DR - 7M MR Steel Tin Plate Sheet Stone Finish 0.18mm For Food Containers

Certification
China Jiangsu Senyilu Metal Material Co., Ltd. certification
China Jiangsu Senyilu Metal Material Co., Ltd. certification
Customer Reviews
การบริการของลีโอนั้น ยอดเยี่ยมมาก และทำงานกับเขาเป็นเวลานานในการจัดส่ง ที่รวดเร็ว และให้เครดิต

—— ทรงพระเจริญ

It is the third time that we have cooperated with Ms Melinda, and I am really touched by their honesty and sincerity. We have gained a lot every time we do it.

—— Mark

I'm Online Chat Now

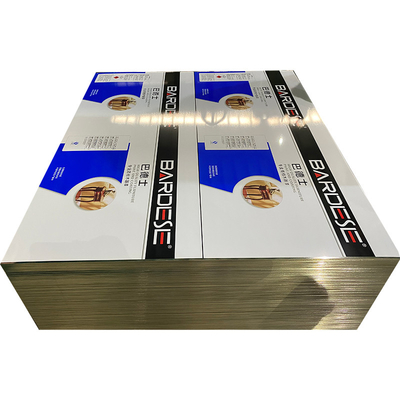

DR - 7M MR Steel Tin Plate Sheet Stone Finish 0.18mm For Food Containers

DR - 7M MR Steel Tin Plate Sheet Stone Finish 0.18mm For Food Containers
DR - 7M MR Steel Tin Plate Sheet Stone Finish 0.18mm For Food Containers
DR - 7M MR Steel Tin Plate Sheet Stone Finish 0.18mm For Food Containers DR - 7M MR Steel Tin Plate Sheet Stone Finish 0.18mm For Food Containers DR - 7M MR Steel Tin Plate Sheet Stone Finish 0.18mm For Food Containers DR - 7M MR Steel Tin Plate Sheet Stone Finish 0.18mm For Food Containers

Large Image :  DR - 7M MR Steel Tin Plate Sheet Stone Finish 0.18mm For Food Containers

Product Details:
Place of Origin: CHINA
Brand Name: SYL
Certification: CE ISO
Model Number: tinplate
Payment & Shipping Terms:
Minimum Order Quantity: 5ton
Price: $800-1000/Metric Ton
Packaging Details: Standard seaworthy export packing or as customer demands
Delivery Time: 7-15 work days
Payment Terms: T/T, Western Union, L/C, D/A, D/P
Supply Ability: 2000 Ton/Tons per Month

DR - 7M MR Steel Tin Plate Sheet Stone Finish 0.18mm For Food Containers

Description
Product Name: MR Steel Tin Plate Sheet Stone Finish For Food Coantiners Temper: DR-7M
Material: MR; SPCC Colour: Tin Colour
Surface Treatment: Tin Coated For Print Surface: Stone Finished
Thickness: 0.16mm; 0.17mm; 0.18mm; 0.19mm Application: Foods Containers
High Light:

MR Steel Tinplate Sheet Stone Finish

,

DR-7M Steel Tinplate Sheet

,

0.18 mm Steel Tinplate Sheet

MR Steel Tin Plate Sheet Stone Finish For Food Containers



Product Introduction



MR steel tin plates with stone finish have been widely used in food conatiners for many years, such as infant milk powders, fish can containers and so on.



Improvements of the steel production processes (lower melting residuals and better inclusion cleanliness, switch from ingots to continuous casting, good temperature controls during hot rolling, high precision cold rolling).



Improvements of the coating process (hot dip tinning replaced by electro tinning to reduce the thickness of the tin layer).

Improvements of lacquers to increase the corrosion resistance, switch from soldering to electric welding for the can bodies.



Specifications



Product Name

MR Steel Tin Plate Sheet Stone Finish For Food Containers

Standard

JIS

Material

MR

Grade

Prime

Annealing

BA/ CA

Thickness

0.16-1.0mm

Width

As customer required and ordered

Temper

T1, T2, T3, T4, T5, DR-7m, DR-8, DR-8m

Coating(g/m2)

1.1/1.1  2.0/2.0  2.8/2.8

Surface Finish

Stone finish

Packaging

Standard export packing or according to customer's requirements.

Payment

T/T or L/C



JIANGSU SENYILU METAL MATERIAL CO., LTD supplies different specifications of Double reduced (DR) tinplate and Single reduced (SR) tinplate.



It can be used in many parts,such as food can, oil can and caps. At present, tinplates have been exported to many countries around the world, such as Egypt, Russia, Myanmar, Thailand and other countries. It is widely used in food packaging and chemical product packagings. We can provide high-quality tinplates that meet international standards.

DR - 7M MR Steel Tin Plate Sheet Stone Finish 0.18mm For Food Containers 0



Coating Structure

DR - 7M MR Steel Tin Plate Sheet Stone Finish 0.18mm For Food Containers 1

Production Process

DR - 7M MR Steel Tin Plate Sheet Stone Finish 0.18mm For Food Containers 2



Mechanical Properties

Temper Grade

Hardness(HR30Tm)

Yield Strength(MPa)

T-1

49±3

330

T-2

53±3

350

T-3

57±3

370

T-4

61±3

415

T-5

65±3

450

T-6

70±3

530

DR-7M

71±5

520

DR-8

73±5

550

DR-8M

73±5

580

DR-9

76±5

620

DR-9M

77±5

660

DR-10

80±5

690



Coating Weight

Former Coating Designation

Nominal Coating Weight
(g/m2)

Minimum average Coating Weight (g/m2)

10#

1.1/1.1

0.9/0.9

20#

2.2/2.2

1.8/1.8

25#

2.8/2.8

2.5/2.5

50#

5.6/5.6

5.2/5.2

75#

8.4/8.4

7.8/7.8

100#

11.2/11.2

10.1/10.1

25#/10#

2.8/1.1

2.5/0.9

50#/10#

5.6/1.1

5.2/0.9

75#/25#

5.6/2.8

5.2/2.5

75#/50#

8.4/2.8

7.8/2.5

75#/50#

8.4/5.6

7.8/5.2

100#/25#

11.2/2.8

10.1/2.5

100#/50#

11.2/5.6

10.1/5.2

100#/75#

11.2/8.4

10.1/7.8

125#/50#

15.1/5.6

13.9/5.2



Applications

Tinplate is primarily used for packaging foodstuffs and beverages, but it is also used in containers for oils, grease, paints, polishes, chemicals and many other products. Aerosol containers and caps and closures are also made from ETP.

DR - 7M MR Steel Tin Plate Sheet Stone Finish 0.18mm For Food Containers 3

DR - 7M MR Steel Tin Plate Sheet Stone Finish 0.18mm For Food Containers 4





FAQ:



Q1. What are your company's main products ?

A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.

Q2. How do you control quality ?

A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS.

Q3. What are the advantages of your company ?

A3: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.

Q4. How many coutries you already exported ?

A4: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.

Q5. Can you provide sample ?

A5: We can provide the samll samples in stock for free, as long as you contact us.

Customized samples will take about 5-7days.
