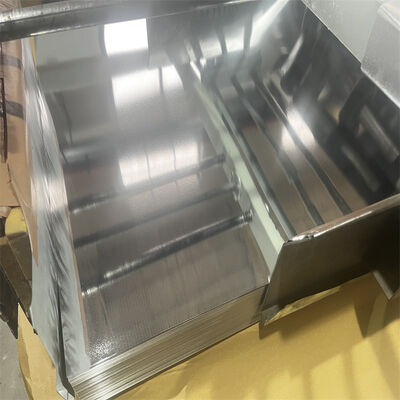

ETP Tinplate Sheet 0.19mm 0.20mm In Thickness Tin Metal Sheets For Containers
Product Details
| Product Name: | Steel Tin Plate | Packing: | Standard Seaworthy Package |
|---|---|---|---|
| Shape: | Flat Steel Plate | Tin Coating: | 2.8/2.8, 1.1/1.1/ 5.6/5.6 |
| Special Use: | Metal Packing / Crwon Cap / Food Packing | Application: | Food Packaging; Printing |
| Grade: | SGCC/CGCC/TDC51DZM/TDC52DTS350GD | Applications: | Food Packaging, Chemical Containers, Electronics |
| Highlight |
ETP tinplate sheet,0.19mm tinplate sheet,0.20mm tin metal sheets |
||
Product Description
ETP Tinplate sheet 0.19mm, 0.20mm in thickness Tin Metal Sheets for containers
Tinplate is a thin steel sheet coated by tin. It has an extremely beautiful metallic luster as well as excellent properties in corrosion resistance, solderability, and weldability.
Tinplate is used for making all types of containers such as food cans, beverage cans, 18-liter cans, and artistic cans. Its applications are not limited to containers; recently, tinplate has also been used for making electrical machinery parts and many other products.
| Product Name | ETP Tinplate sheet 0.19mm, 0.20mm in thickness Tin Metal Sheets for containers |
|---|---|
| Standard | GB, JIS, DIN, ASTM |
| Material | MR SPCC |
| Grade | Prime |
| Annealing | BA/CA |
| Thickness | 0.14-6.0mm |
| Width | 600-1500mm |
| Temper | T1, T2, T3, T4, T5, DR7, DR8, DR9, TH550, TH580, TH620, TH660 |
| Coating (g/m²) | 1.1/1, 2.0/2.0, 2.8/2.8, 2.8/5.6, 5.6/5.6, 8.4/8.4, 11.2/11.2, etc |
| Surface Finish | Stone, Bright, Silver |
| Packaging | Standard export packing or according to customer's requirements |
| Payment | T/T or L/C or D/P |
Tinplate (SPTE) is a common name for electroplated tin steel sheets, which refers to cold-rolled low-carbon steel sheets or strips coated with commercial pure tin on both sides. Tin mainly acts to prevent corrosion and rust.
It combines the strength and formability of steel with the corrosion resistance, solderability and aesthetic appearance of tin in a material with corrosion resistance, non-toxicity, high strength and good ductility.
Tin-plate packaging has a wide range of coverage in the packaging industry because of its good sealing, preservation, light-proof, ruggedness and unique metal decoration charm. Because of its strong antioxidant, diverse styles and exquisite printing, tinplate packaging container is popular with customers, and widely used in food packaging, pharmaceutical packaging, commodity packaging, instrument packaging, and industrial packaging.
| Temper Grade | Hardness (HR30Tm) | Yield Strength (MPa) |
|---|---|---|
| T-1 | 49±3 | 330 |
| T-2 | 53±3 | 350 |
| T-3 | 57±3 | 370 |
| T-4 | 61±3 | 415 |
| T-5 | 65±3 | 450 |
| T-6 | 70±3 | 530 |
| DR-7M | 71±5 | 520 |
| DR-8 | 73±5 | 550 |
| DR-8M | 73±5 | 580 |
| DR-9 | 76±5 | 620 |
| DR-9M | 77±5 | 660 |
| DR-10 | 80±5 | 690 |
| Former Coating Designation | Nominal Coating Weight (g/m²) | Minimum Average Coating Weight (g/m²) |
|---|---|---|
| 10# | 1.1/1.1 | 0.9/0.9 |
| 20# | 2.2/2.2 | 1.8/1.8 |
| 25# | 2.8/2.8 | 2.5/2.5 |
| 50# | 5.6/5.6 | 5.2/5.2 |
| 75# | 8.4/8.4 | 7.8/7.8 |
| 100# | 11.2/11.2 | 10.1/10.1 |
| 25#/10# | 2.8/1.1 | 2.5/0.9 |
| 50#/10# | 5.6/1.1 | 5.2/0.9 |
| 75#/25# | 5.6/2.8 | 5.2/2.5 |
| 75#/50# | 8.4/2.8 | 7.8/2.5 |
| 75#/50# | 8.4/5.6 | 7.8/5.2 |
| 100#/25# | 11.2/2.8 | 10.1/2.5 |
| 100#/50# | 11.2/5.6 | 10.1/5.2 |
| 100#/75# | 11.2/8.4 | 10.1/7.8 |
| 125#/50# | 15.1/5.6 | 13.9/5.2 |
