Food Grade Tin Plate Steel Sheet Electrolytic Tinplate Coil DR9 1050mm

Food Grade Tin Plate Steel Sheet Electrolytic Tinplate Coil DR9 1050mm
Food Grade Tin Plate Steel Sheet Electrolytic Tinplate Coil DR9 1050mm
Food Grade Tin Plate Steel Sheet Electrolytic Tinplate Coil DR9 1050mm Food Grade Tin Plate Steel Sheet Electrolytic Tinplate Coil DR9 1050mm Food Grade Tin Plate Steel Sheet Electrolytic Tinplate Coil DR9 1050mm Food Grade Tin Plate Steel Sheet Electrolytic Tinplate Coil DR9 1050mm

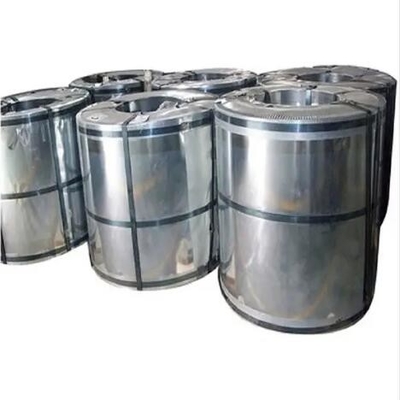

Large Image :  Food Grade Tin Plate Steel Sheet Electrolytic Tinplate Coil DR9 1050mm

Product Details:
Place of Origin: CHINA
Brand Name: SYL
Certification: CE ISO
Model Number: tinplate
Payment & Shipping Terms:
Minimum Order Quantity: 5 tons
Price: ＄800-1000/Metric Ton
Packaging Details: Standard seaworthy export packing or as customer demands
Delivery Time: 7-15 work days
Payment Terms: T/T, Western Union, L/C, D/A, D/P
Supply Ability: 2000 Ton/Tons per Month
Contact Now

Food Grade Tin Plate Steel Sheet Electrolytic Tinplate Coil DR9 1050mm

Description
Product Name: Electrolytic Tinplate Coil Feature: Good Thermal Conductivity
Width: 585mm-995mm Colour: Tin Colour
Type: Coil Surface: Color Coated Or Tin Painted
Thickness: 0.12mm--0.41mm Material: SPCC; MR; D; L
High Light:

Electrolytic Tinplate Coil Food Grade

,

DR9 Electrolytic Tin plate Coil

,

Electrolytic Tin plate Coil 1050mm

Food Grade Tin Plate Tin Steel Sheet Electrolytic Tinplate Sheet



What is Tinplate?



Tinplate (SPTE), is tin plated on both sides of the iron sheet, that is, cold rolled low carbon thin steel plate, rust resistance, corrosion resistance, non-toxic. Mainly used for making metal packaging, including canned food, beverage, chemical, medicine, sanitation, coatings, paints, sprays, cosmetic caps and so on.



The main advantages of tinplate are:



  • Soft, easy to bend, stretch, punch.
  • It is lighter in weight than glass jars and not easily broken.
  • Easy to carry, transport and keep.
  • It has good thermal conductivity, short sterilization time, and is not easy to break when the temperature changes sharply.



Specifications



Tinplate
PRODUCT Prime tinplate
STANDARD BS EN 10202, DIN EN 10203, GB/T2520, JIS G3303
Grade Prime
Annealing BA CA
SIZE thickness: 0.15-0.5mm
width: 600-1050mm
TEMPER T2-T4,DR7 DR8 DR9
COATING 1.1-8.4g/m2
FINISH Stone, Bright, Silver
PACKING Standard export packing, or according to customer's requirements.
MOQ 1 ton
DELIVERY 15-30 days after receipt of original L/C or pre-payment
PAYMENT T/T or L/C



JIANGSU SENYILU METAL MATERIAL CO., LTD supplies different specifications of Double reduced (DR) tinplate and Single reduced (SR) tinplate.



It can be used in many parts,such as food can, oil cans and caps. At present, tinplates have been exported to many countries around the world, such as Egypt, , Myanmar, Thailand and other countries. It is widely used in food packaging and chemical product packagings. We can provide high-quality tinplates that meet international standards.



Food Grade Tin Plate Steel Sheet Electrolytic Tinplate Coil DR9 1050mm 0



Coating Structure

Food Grade Tin Plate Steel Sheet Electrolytic Tinplate Coil DR9 1050mm 1

Production Process

Food Grade Tin Plate Steel Sheet Electrolytic Tinplate Coil DR9 1050mm 2



Mechanical Properties

Temper Grade

Hardness(HR30Tm)

Yield Strength(MPa)

T-1

49±3

330

T-2

53±3

350

T-3

57±3

370

T-4

61±3

415

T-5

65±3

450

T-6

70±3

530

DR-7M

71±5

520

DR-8

73±5

550

DR-8M

73±5

580

DR-9

76±5

620

DR-9M

77±5

660

DR-10

80±5

690



Coating Weight

Former Coating Designation

Nominal Coating Weight
(g/m2)

Minimum average Coating Weight (g/m2)

10#

1.1/1.1

0.9/0.9

20#

2.2/2.2

1.8/1.8

25#

2.8/2.8

2.5/2.5

50#

5.6/5.6

5.2/5.2

75#

8.4/8.4

7.8/7.8

100#

11.2/11.2

10.1/10.1

25#/10#

2.8/1.1

2.5/0.9

50#/10#

5.6/1.1

5.2/0.9

75#/25#

5.6/2.8

5.2/2.5

75#/50#

8.4/2.8

7.8/2.5

75#/50#

8.4/5.6

7.8/5.2

100#/25#

11.2/2.8

10.1/2.5

100#/50#

11.2/5.6

10.1/5.2

100#/75#

11.2/8.4

10.1/7.8

125#/50#

15.1/5.6

13.9/5.2



Applications ans Cases

Tinplate is primarily used for packaging foodstuffs and beverages, but it is also used in containers for oils, grease, paints, polishes, chemicals and many other products. Aerosol containers and caps and closures are also made from ETP.

Food Grade Tin Plate Steel Sheet Electrolytic Tinplate Coil DR9 1050mm 3

Food Grade Tin Plate Steel Sheet Electrolytic Tinplate Coil DR9 1050mm 4

Food Grade Tin Plate Steel Sheet Electrolytic Tinplate Coil DR9 1050mm 5



FAQ:



Q1. What are your company's main products ?

A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.

Q2. How do you control quality ?

A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS.

Q3. What are the advantages of your company ?

A3: We have many professionals, technical personnel, more competitive prices and best after-dales service than other steel companies.

Q4. How many coutries you already exported ?

A4: Exported to more than 50 countries mainly to Egypt, , Myanmar, Thailand etc.

Q5. Can you provide sample ?

A5: We can provide the samll samples in stock for free, as long as you contact us.

Customized samples will take about 5-7days.
