Home /Products/Steel Tin Plate/ETP TFS 0.19mm Thickness Steel Tin Plate Flat Used For Baby Milk Powder Cans

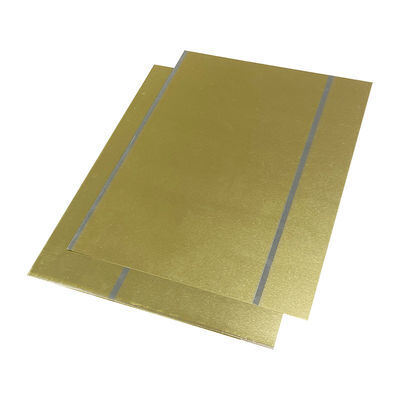

ETP TFS 0.19mm Thickness Steel Tin Plate Flat Used For Baby Milk Powder Cans

1Tons
MOQ
negotiate
Price
ETP TFS 0.19mm Thickness Steel Tin Plate Flat Used For Baby Milk Powder Cans
Features Gallery Product Description Chat Now
Features
Specifications
Tin Coating Weight: 1.1g/m² - 5.6g/m²
Surface Treatment: Tin Coated
Mechanical Properties: High Strength, Good Ductility
Coating: Tin Coating
Tin Coating: 1.1/1.1 2.0/2.0 2.8/2.8 5.6/5.6 (g/m2)
Type: Coils And Sheets
Package: Standard Seaworthy Packing
Application: Food Can Beverage Can Grease Can
Thickness Tolerance: -+0.005mm
Width: 600mm - 1250mm
Productname: Steel Tin Plate
Hardness: T1-T5
Colour: Tin Colour And Gold Colour
Grade: SPHC-SPHD
Elongation: ≥30%
Highlight:

0.19mm Steel Tin Plate

,

TFS Steel Tin Plate

,

ETP tinplate metal
Basic Infomation
Place of Origin: China
Brand Name: Wuxi Talat
Model Number: ETP Tinplate
Payment & Shipping Terms
Packaging Details: Standard Seaworthy Packing
Delivery Time: 20days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 10000tons
Product Description

ETP/ TFS 0.19mm Thickness Steel Tin Plate Flat Used For Baby Milk Powder Cans



Product Introduction

Tinplate(SPTE) is a common name for electroplated tin steel sheets, which refers to cold-rolled low-carbon steel sheets or strips coated with commercial pure tin on both sides. Tin mainly acts to prevent corrosion and rust. It combines the strength and formability of steel with the corrosion resistance, solderability and aesthetic appearance of tin in a material with corrosion resistance, non-toxicity, high strength and good ductility.Tin-plate packaging has a wide range of coverage in the packaging industry because of its good sealing, preservation, light-proof, ruggedness and unique metal decoration charm. Because of its strong antioxidant, diverse styles and exquisite printing, tinplate packaging container is popular with customers, and widely used in food packaging, pharmaceutical packaging, commodity packaging, instrument packaging, industrial packaging and so on.





ETP TFS 0.19mm Thickness Steel Tin Plate Flat Used For Baby Milk Powder Cans 0






Specifications
Product Name
Tinplate(SPTE/ETP)
Standard
JIS, DIN
Material
MR SPCC
Grade
Prime
Annealing
BA/CA
Thickness
0.18-3.0mm
Width
600-1500mm
Temper
T1, T2, T3, T4, T5, DR7, DR8, DR9, TH550, TH580, TH620, TH660
Coating(g/m2)
1.1/1, 2.0/2.0, 2.8/2.8, 2.8/5.6, 5.6/5.6, 8.4/8.4, 11.2/11.2, etc
Surface Finish
Stone, Bright, Silver
Packaging
Standard export packing.
or according to customer's requirements.
Payment
T/T or L/C



Wuxi Talat Steel Co., Ltd supplies various specifications of Double reduced (DR) tinplate and Single reduced (SR) tinplate. At present, the tinplate produced by AIYIA has been exported to many countries around the world, such as Italy, , Tunisia, Thailand, Brazil and other countries. It is widely used in food packaging and chemical product packaging. We provide high-quality tinplate that meets international standards.


ETP TFS 0.19mm Thickness Steel Tin Plate Flat Used For Baby Milk Powder Cans 1
ETP TFS 0.19mm Thickness Steel Tin Plate Flat Used For Baby Milk Powder Cans 2
Coating Structure
ETP TFS 0.19mm Thickness Steel Tin Plate Flat Used For Baby Milk Powder Cans 3
Production Process
ETP TFS 0.19mm Thickness Steel Tin Plate Flat Used For Baby Milk Powder Cans 4
Mechanical Properties
emper Grade
Hardness(HR30Tm)
Yield Strength(MPa)
T-1
49±3
330
T-2
53±3
350
T-3
57±3
370
T-4
61±3
415
T-5
65±3
450
T-6
70±3
530
DR-7M
71±5
520
DR-8
73±5
550
DR-8M
73±5
580
DR-9
76±5
620
DR-9M
77±5
660
DR-10
80±5
690



Coating Weight



Former Coating Designation
Nominal Coating Weight
(g/m2)
Minimum average Coating Weight (g/m2)
10#
1.1/1.1
0.9/0.9
20#
2.2/2.2
1.8/1.8
25#
2.8/2.8
2.5/2.5
50#
5.6/5.6
5.2/5.2
75#
8.4/8.4
7.8/7.8
100#
11.2/11.2
10.1/10.1
25#/10#
2.8/1.1
2.5/0.9
50#/10#
5.6/1.1
5.2/0.9
75#/25#
5.6/2.8
5.2/2.5
75#/50#
8.4/2.8
7.8/2.5
75#/50#
8.4/5.6
7.8/5.2
100#/25#
11.2/2.8
10.1/2.5
100#/50#
11.2/5.6
10.1/5.2
100#/75#
11.2/8.4
10.1/7.8
125#/50#
15.1/5.6
13.9/5.2


Applications

Tinplate is primarily used for packaging foodstuffs and beverages, but it is also used in containers for oils, grease, paints, polishes, chemicals and many other products. Aerosol containers and caps and closures are also made from ETP.
ETP TFS 0.19mm Thickness Steel Tin Plate Flat Used For Baby Milk Powder Cans 5

Quality Inspection

ETP TFS 0.19mm Thickness Steel Tin Plate Flat Used For Baby Milk Powder Cans 6

ETP TFS 0.19mm Thickness Steel Tin Plate Flat Used For Baby Milk Powder Cans 7

FAQ:

Q1. What are your company's main products ?

A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.

Q2. How do you control quality ?

A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS.

Q3. What are the advantages of your company ?

A3: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.

Q4. How many coutries you already exported ?

A4: Exported to more than 50 countries mainly from America, , UK, Kuwait, Egypt, Turkey, Jordan,India, etc.

Q5. Can you provide sample ?

A5: We can provide the samll samples in stock for free, as long as you contact us.

Customized samples will take about 5-7days.
