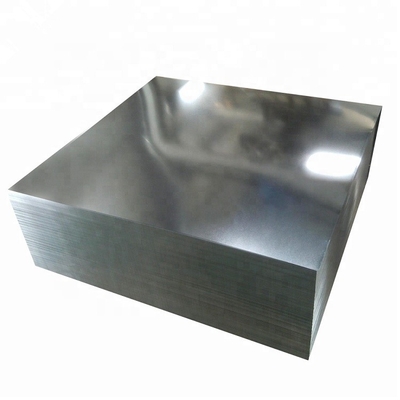

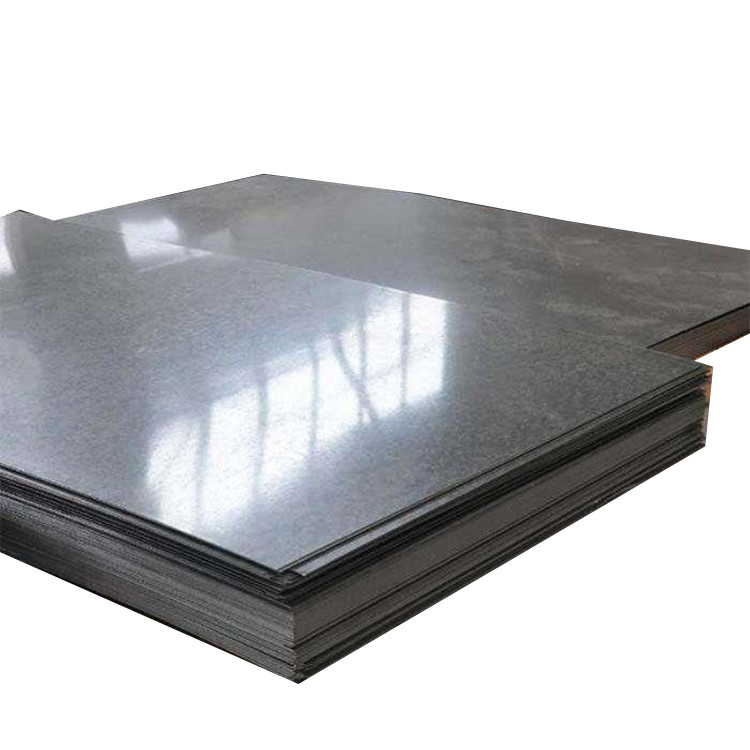

Food Grade Tin Plate Electrolytic Tinplate Steel Sheet

Food Grade Tin Plate Electrolytic Tinplate Steel Sheet
Food Grade Tin Plate Electrolytic Tinplate Steel Sheet
Food Grade Tin Plate Electrolytic Tinplate Steel Sheet Food Grade Tin Plate Electrolytic Tinplate Steel Sheet Food Grade Tin Plate Electrolytic Tinplate Steel Sheet Food Grade Tin Plate Electrolytic Tinplate Steel Sheet Food Grade Tin Plate Electrolytic Tinplate Steel Sheet

Large Image :  Food Grade Tin Plate Electrolytic Tinplate Steel Sheet

Product Details:
Place of Origin: CHINA
Brand Name: SYL
Certification: CE ISO
Model Number: tinplate
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: $480-700/Metric Ton
Packaging Details: Standard seaworthy export packing or as customer demands
Delivery Time: 7-15 work days
Payment Terms: T/T, Western Union, L/C, D/A, D/P
Supply Ability: 2000 Ton/Tons per Month

Food Grade Tin Plate Electrolytic Tinplate Steel Sheet

Description
Product Name: Tin Plate Food Grade Tin Free Steel Sheet Electrolytic Tinplate Sheet Width:: 600-1500MM,etc
Standard: JIS ASTM ASME GB DIN EN Temper: T1-T5,DR8,DR9
Packing: According To Customer Needs Tin Coating: As Required
Thickness:: 0.12-0.7mm
Highlight:

Electrolytic Thin Tin Plate

,

6mm Tin Plated Steel Sheet

,

DIN Tin Coated Steel Sheet

JIANGSU SENYILU METAL MATERIAL CO., LTD supplies various specifications of Double reduced (DR) tinplate and Single reduced (SR) tinplate. At present, the tinplate produced by AIYIA has been exported to many countries around the world, such as Italy, , Tunisia, Thailand, Brazil and other countries. It is widely used in food packaging and chemical product packaging. We provide high-quality tinplate that meets international standards.



Food Grade Tin Plate Electrolytic Tinplate Steel Sheet 0



Specifications
Product Name
Tinplate(SPTE/ETP)
Standard
GB, JIS, DIN ,ASTM
Material
MR SPCC
Grade
Prime
Annealing
BA/CA
Thickness
0.14-6.0mm
Width
600-1500mm
Temper
T1, T2, T3, T4, T5, DR7, DR8, DR9, TH550, TH580, TH620, TH660
Coating(g/m2)
1.1/1, 2.0/2.0, 2.8/2.8, 2.8/5.6, 5.6/5.6, 8.4/8.4, 11.2/11.2, etc
Surface Finish
Stone, Bright, Silver
Packaging
Standard export packing.
or according to customer's requirements.
Payment
T/T or L/C or D/P



Product Introduction

Tinplate(SPTE) is a common name for electroplated tin steel sheets, which refers to cold-rolled low-carbon steel sheets or strips coated with commercial pure tin on both sides. Tin mainly acts to prevent corrosion and rust. It combines the strength and formability of steel with the corrosion resistance, solderability and aesthetic appearance of tin in a material with corrosion resistance, non-toxicity, high strength and good ductility.Tin-plate packaging has a wide range of coverage in the packaging industry because of its good sealing, preservation, light-proof, ruggedness and unique metal decoration charm. Because of its strong antioxidant, diverse styles and exquisite printing, tinplate packaging container is popular with customers, and widely used in food packaging, pharmaceutical packaging, commodity packaging, instrument packaging, industrial packaging and so on.

Food Grade Tin Plate Electrolytic Tinplate Steel Sheet 1
Food Grade Tin Plate Electrolytic Tinplate Steel Sheet 2
Food Grade Tin Plate Electrolytic Tinplate Steel Sheet 3
Food Grade Tin Plate Electrolytic Tinplate Steel Sheet 4
Coating Structure
Food Grade Tin Plate Electrolytic Tinplate Steel Sheet 5
Production Process
Food Grade Tin Plate Electrolytic Tinplate Steel Sheet 6
Mechanical Properties
emper Grade
Hardness(HR30Tm)
Yield Strength(MPa)
T-1
49±3
330
T-2
53±3
350
T-3
57±3
370
T-4
61±3
415
T-5
65±3
450
T-6
70±3
530
DR-7M
71±5
520
DR-8
73±5
550
DR-8M
73±5
580
DR-9
76±5
620
DR-9M
77±5
660
DR-10
80±5
690



Coating Weight



Former Coating Designation
Nominal Coating Weight
(g/m2)
Minimum average Coating Weight (g/m2)
10#
1.1/1.1
0.9/0.9
20#
2.2/2.2
1.8/1.8
25#
2.8/2.8
2.5/2.5
50#
5.6/5.6
5.2/5.2
75#
8.4/8.4
7.8/7.8
100#
11.2/11.2
10.1/10.1
25#/10#
2.8/1.1
2.5/0.9
50#/10#
5.6/1.1
5.2/0.9
75#/25#
5.6/2.8
5.2/2.5
75#/50#
8.4/2.8
7.8/2.5
75#/50#
8.4/5.6
7.8/5.2
100#/25#
11.2/2.8
10.1/2.5
100#/50#
11.2/5.6
10.1/5.2
100#/75#
11.2/8.4
10.1/7.8
125#/50#
15.1/5.6
13.9/5.2


Applications

Tinplate is primarily used for packaging foodstuffs and beverages, but it is also used in containers for oils, grease, paints, polishes, chemicals and many other products. Aerosol containers and caps and closures are also made from ETP.
Food Grade Tin Plate Electrolytic Tinplate Steel Sheet 7

Quality Inspection

Food Grade Tin Plate Electrolytic Tinplate Steel Sheet 8

Food Grade Tin Plate Electrolytic Tinplate Steel Sheet 9

Food Grade Tin Plate Electrolytic Tinplate Steel Sheet 10

Food Grade Tin Plate Electrolytic Tinplate Steel Sheet 11Food Grade Tin Plate Electrolytic Tinplate Steel Sheet 12Food Grade Tin Plate Electrolytic Tinplate Steel Sheet 13

FAQ:

Q1. What are your company's main products ?

A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.

Q2. How do you control quality ?

A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS.

Q3. What are the advantages of your company ?

A3: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.

Q4. How many coutries you already exported ?

A4: Exported to more than 50 countries mainly from America, , UK, Kuwait, Egypt, Turkey, Jordan,India, etc.

Q5. Can you provide sample ?

A5: We can provide the samll samples in stock for free, as long as you contact us.

Customized samples will take about 5-7days.
