Low Carbon Electrolytic Tin Plate Cold Rolled 0.12mm - 0.41mm

Certification
China Jiangsu Senyilu Metal Material Co., Ltd. certification
China Jiangsu Senyilu Metal Material Co., Ltd. certification
Customer Reviews
การบริการของลีโอนั้น ยอดเยี่ยมมาก และทำงานกับเขาเป็นเวลานานในการจัดส่ง ที่รวดเร็ว และให้เครดิต

—— ทรงพระเจริญ

It is the third time that we have cooperated with Ms Melinda, and I am really touched by their honesty and sincerity. We have gained a lot every time we do it.

—— Mark

I'm Online Chat Now

Low Carbon Electrolytic Tin Plate Cold Rolled 0.12mm - 0.41mm

Low Carbon Electrolytic Tin Plate Cold Rolled 0.12mm - 0.41mm
Low Carbon Electrolytic Tin Plate Cold Rolled 0.12mm - 0.41mm
Low Carbon Electrolytic Tin Plate Cold Rolled 0.12mm - 0.41mm Low Carbon Electrolytic Tin Plate Cold Rolled 0.12mm - 0.41mm Low Carbon Electrolytic Tin Plate Cold Rolled 0.12mm - 0.41mm Low Carbon Electrolytic Tin Plate Cold Rolled 0.12mm - 0.41mm

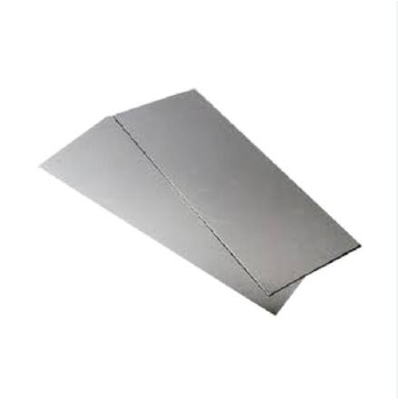

Large Image :  Low Carbon Electrolytic Tin Plate Cold Rolled 0.12mm - 0.41mm

Product Details:
Place of Origin: CHINA
Brand Name: SYL
Certification: CE ISO
Model Number: tinplate
Payment & Shipping Terms:
Minimum Order Quantity: 5 tons
Price: $800-1000/Metric Ton
Packaging Details: Standard seaworthy export packing or as customer demands
Delivery Time: 7-15 work days
Payment Terms: T/T, Western Union, L/C, D/A, D/P
Supply Ability: 2000 Ton/Tons per Month

Low Carbon Electrolytic Tin Plate Cold Rolled 0.12mm - 0.41mm

Description
Product Name: Electrolytic Tin Plate Feature: Good Ductility
Width: 585mm-995mm Colour: Tin Colour
Type: Flat Plate Surface: Color Coated Or Tin Painted
Thickness: 0.12mm--0.41mm Material: SPCC; MR; D; L
High Light:

Cold Rolled Electrolytic Tin Plate

,

0.12mm Electrolytic Tin Plate

,

Carbon Electrolytic Tin Plate 0.41 mm

Cold Rolled Low Carbon Electrolytic Tin Plate 0.12mm-0.41mm



Product Introduction



Tinplate(SPTE/ETP) is a common name for electroplated tin steel sheets, which refers to cold-rolled low-carbon steel sheets or strips coated with commercial pure tin on bo th sides. Tin mainly acts to prevent corrosion and rust. It combines the strength and formability of steel with the corrosion resistance, solderability and aesthetic appearance of tin in a material with corrosion resistance, non-toxicity, high strength and good ductility.



Specifications



Tinplate
PRODUCT Prime tinplate
STANDARD BS EN 10202, DIN EN 10203, GB/T2520, JIS G3303
Grade Prime
Annealing BA CA
SIZE thickness: 0.15-0.5mm
width: 600-1050mm
TEMPER T2-T4,DR7 DR8 DR9
COATING 1.1-8.4g/m2
FINISH Stone, Bright, Silver
PACKING Standard export packing, or according to customer's requirements.
MOQ 1 ton
DELIVERY 15-30 days after receipt of original L/C or pre-payment
PAYMENT T/T or L/C



Features Of Tinplate



  • Excellent Corrosion Resistance: By selecting a proper coating weight, appropriate corrosion resistance is obtained against container contents.
  • Excellent Paintability & Printability: Printing is beautifully finished using various lacquers and inks.
  • Excellent Solderability & Weldability: tinplate is widely used for making various types of cans by soldering or welding.
  • Excellent Formability & Strength: By selecting a proper temper grade, appropriate formability is obtained for various applications as well as the required strength after forming.
  • Beautiful Appearance: tinplate is characterized by its beautiful metallic luster. Products with various kinds of surface roughness are produced by selecting the surface finish of the substrate steel sheet.



JIANGSU SENYILU METAL MATERIAL CO., LTD supplies different specifications of Double reduced (DR) tinplate and Single reduced (SR) tinplate.



It can be used in many parts,such as food can, oil cans and caps. At present, tinplates have been exported to many countries around the world, such as Egypt, Russia, Myanmar, Thailand and other countries. It is widely used in food packaging and chemical product packagings. We can provide high-quality tinplates that meet international standards.



Low Carbon Electrolytic Tin Plate Cold Rolled 0.12mm - 0.41mm 0



Coating Structure

Low Carbon Electrolytic Tin Plate Cold Rolled 0.12mm - 0.41mm 1

Production Process

Low Carbon Electrolytic Tin Plate Cold Rolled 0.12mm - 0.41mm 2



Mechanical Properties

Temper Grade

Hardness(HR30Tm)

Yield Strength(MPa)

T-1

49±3

330

T-2

53±3

350

T-3

57±3

370

T-4

61±3

415

T-5

65±3

450

T-6

70±3

530

DR-7M

71±5

520

DR-8

73±5

550

DR-8M

73±5

580

DR-9

76±5

620

DR-9M

77±5

660

DR-10

80±5

690



Coating Weight

Former Coating Designation

Nominal Coating Weight
(g/m2)

Minimum average Coating Weight (g/m2)

10#

1.1/1.1

0.9/0.9

20#

2.2/2.2

1.8/1.8

25#

2.8/2.8

2.5/2.5

50#

5.6/5.6

5.2/5.2

75#

8.4/8.4

7.8/7.8

100#

11.2/11.2

10.1/10.1

25#/10#

2.8/1.1

2.5/0.9

50#/10#

5.6/1.1

5.2/0.9

75#/25#

5.6/2.8

5.2/2.5

75#/50#

8.4/2.8

7.8/2.5

75#/50#

8.4/5.6

7.8/5.2

100#/25#

11.2/2.8

10.1/2.5

100#/50#

11.2/5.6

10.1/5.2

100#/75#

11.2/8.4

10.1/7.8

125#/50#

15.1/5.6

13.9/5.2



Applications ans Cases

Tinplate is primarily used for packaging foodstuffs and beverages, but it is also used in containers for oils, grease, paints, polishes, chemicals and many other products. Aerosol containers and caps and closures are also made from ETP.

Low Carbon Electrolytic Tin Plate Cold Rolled 0.12mm - 0.41mm 3

Low Carbon Electrolytic Tin Plate Cold Rolled 0.12mm - 0.41mm 4

Low Carbon Electrolytic Tin Plate Cold Rolled 0.12mm - 0.41mm 5



FAQ:



Q1. What are your company's main products ?

A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.

Q2. How do you control quality ?

A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS.

Q3. What are the advantages of your company ?

A3: We have many professionals, technical personnel, more competitive prices and best after-dales service than other steel companies.

Q4. How many coutries you already exported ?

A4: Exported to more than 50 countries mainly to Egypt, Russia, Myanmar, Thailand etc.

Q5. Can you provide sample ?

A5: We can provide the samll samples in stock for free, as long as you contact us.

Customized samples will take about 5-7days.
