Product Details:
|
Product Name: | Tin Steel Plate | Feature: | Non-toxicity |
---|---|---|---|
Width: | 585mm-995mm | Colour: | Tin Colour |
Type: | Flat Plate | Surface: | Color Coated Or Tin Painted |
Thickness: | 0.12mm--0.41mm | Material: | SPCC; MR; D; L |
High Light: | SPCC Steel Tin Plate coated,0.5mm Steel Tin Plate,DR9 Steel Tin Plate |

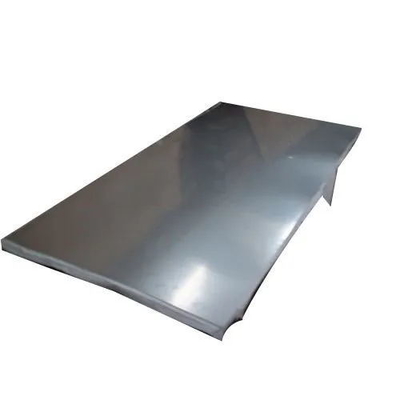

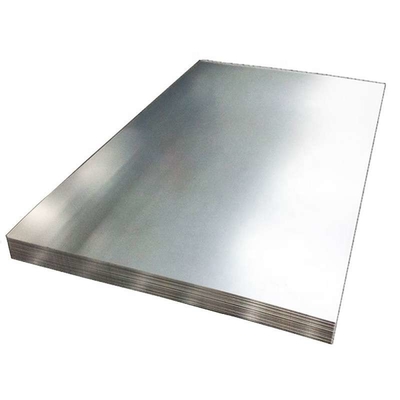

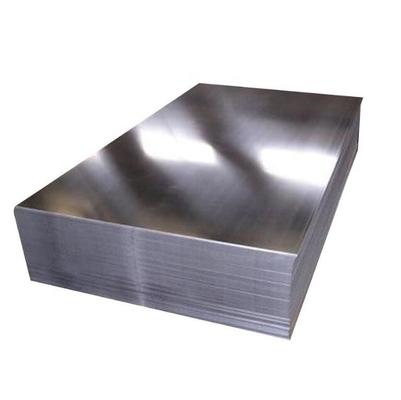

CE ISO Non-Toxicity Tin Steel Plate For Food / Beverages Packaging
Product Introduction
Tinplate has the strength and formability of steel combined with the noncorrosive and nontoxic properties of tin and has the additional property of easy solder ability. While it is largely used for containers for food and beverages, paints, oils, tobacco, and numerous other products, its use has broadened to include toys, baking equipment, and parts for radio and other electronic equipment.
Specifications
Tinplate | |
PRODUCT | Prime tinplate |
STANDARD | BS EN 10202, DIN EN 10203, GB/T2520, JIS G3303 |
Grade | Prime |
Annealing | BA CA |
SIZE | thickness: 0.15-0.5mm |
width: 600-1050mm | |
TEMPER | T2-T4,DR7 DR8 DR9 |
COATING | 1.1-8.4g/m2 |
FINISH | Stone, Bright, Silver |
PACKING | Standard export packing, or according to customer's requirements. |
MOQ | 1 ton |
DELIVERY | 15-30 days after receipt of original L/C or pre-payment |
PAYMENT | T/T or L/C |
Tinplate & Tin Coated Steel Applications
A majority of tinplate products have been used by the container industry in the manufacturing of closures and cans but today, there has been more demand for tin coated steel in the appliance and automotive markets. Tinplate and tin coated steel have a wide array of uses including but not limited to:
Beverage cans
Food containers
Oil filter shells
Metal hoses
Paint trays
Electronic shields
Machinery parts
Features Of Tinplate
JIANGSU SENYILU METAL MATERIAL CO., LTD supplies different specifications of Double reduced (DR) tinplate and Single reduced (SR) tinplate.
It can be used in many parts,such as food can, oil cans and caps. At present, tinplates have been exported to many countries around the world, such as Egypt, , Myanmar, Thailand and other countries. It is widely used in food packaging and chemical product packagings. We can provide high-quality tinplates that meet international standards.
Coating Structure
Production Process
Mechanical Properties
Temper Grade |
Hardness(HR30Tm) |
Yield Strength(MPa) |
T-1 |
49±3 |
330 |
T-2 |
53±3 |
350 |
T-3 |
57±3 |
370 |
T-4 |
61±3 |
415 |
T-5 |
65±3 |
450 |
T-6 |
70±3 |
530 |
DR-7M |
71±5 |
520 |
DR-8 |
73±5 |
550 |
DR-8M |
73±5 |
580 |
DR-9 |
76±5 |
620 |
DR-9M |
77±5 |
660 |
DR-10 |
80±5 |
690 |
Coating Weight
Former Coating Designation |
Nominal Coating Weight |
Minimum average Coating Weight (g/m2) |
10# |
1.1/1.1 |
0.9/0.9 |
20# |
2.2/2.2 |
1.8/1.8 |
25# |
2.8/2.8 |
2.5/2.5 |
50# |
5.6/5.6 |
5.2/5.2 |
75# |
8.4/8.4 |
7.8/7.8 |
100# |
11.2/11.2 |
10.1/10.1 |
25#/10# |
2.8/1.1 |
2.5/0.9 |
50#/10# |
5.6/1.1 |
5.2/0.9 |
75#/25# |
5.6/2.8 |
5.2/2.5 |
75#/50# |
8.4/2.8 |
7.8/2.5 |
75#/50# |
8.4/5.6 |
7.8/5.2 |
100#/25# |
11.2/2.8 |
10.1/2.5 |
100#/50# |
11.2/5.6 |
10.1/5.2 |
100#/75# |
11.2/8.4 |
10.1/7.8 |
125#/50# |
15.1/5.6 |
13.9/5.2 |
Applications ans Cases
Tinplate is primarily used for packaging foodstuffs and beverages, but it is also used in containers for oils, grease, paints, polishes, chemicals and many other products. Aerosol containers and caps and closures are also made from ETP.
FAQ:
Q1. What are your company's main products ?
A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.
Q2. How do you control quality ?
A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS.
Q3. What are the advantages of your company ?
A3: We have many professionals, technical personnel, more competitive prices and best after-dales service than other steel companies.
Q4. How many coutries you already exported ?
A4: Exported to more than 50 countries mainly to Egypt, , Myanmar, Thailand etc.
Q5. Can you provide sample ?
A5: We can provide the samll samples in stock for free, as long as you contact us.
Customized samples will take about 5-7days.
