T5 0.18mm Steel Tin Plate Food Grade For Milk Can Containers Stone Finish

T5 0.18mm Steel Tin Plate Food Grade For Milk Can Containers Stone Finish
T5 0.18mm Steel Tin Plate Food Grade For Milk Can Containers Stone Finish
T5 0.18mm Steel Tin Plate Food Grade For Milk Can Containers Stone Finish T5 0.18mm Steel Tin Plate Food Grade For Milk Can Containers Stone Finish T5 0.18mm Steel Tin Plate Food Grade For Milk Can Containers Stone Finish

Large Image :  T5 0.18mm Steel Tin Plate Food Grade For Milk Can Containers Stone Finish

Product Details:
Place of Origin: CHINA
Brand Name: SYL
Certification: CE ISO
Model Number: tinplate
Payment & Shipping Terms:
Minimum Order Quantity: 5 tons
Price: negotiated
Packaging Details: Standard seaworthy export packing or as customer demands
Delivery Time: 7-15 work days
Payment Terms: T/T, Western Union, L/C, D/A, D/P
Supply Ability: 2000 Ton/Tons per Month

T5 0.18mm Steel Tin Plate Food Grade For Milk Can Containers Stone Finish

Description
Product Name: Prime T5 0.18mmThickness Food Grade Tinplate Used For Milk Can Containers Surface: Stone Finish
Thickness: 0.18 Mm Colour: Gold Colour And Tin Colour
Base Plate: MR Tin Coating: 2.8g/m2
Technique: Cold Rolled Length: 550mm--990mm
Shape: Sheet/plate Temper: T5
High Light:

stone finish Steel Tinplate Milk Can

,

0.18 mm Milk Can Steel Tin Plate

,

T5 Steel Tinplate Milk Can

Prime T5 0.18mmThickness Food Grade Tinplate used for milk can containers



Product Introduction



Tinplate, thin steel sheet with a coating of tin applied either by dipping in molten metal or by electrolytic deposition; almost all tinplate is now produced by the latter process. Tinplate made by this process is essentially a sandwich in which the central core is strip steel. This core is cleaned in a pickling solution and then fed through tanks containing electrolyte, where tin is deposited on both sides. As the strip passes between high-frequency electric induction coils, it is heated so that the tin coating melts and flows to form a lustrous coat. The end product has a tin coating of about 0.00003 inch (0.00076 millimetre) on each side.





Specifications

Product Name

Prime T5 0.18mmThickness Food Grade Tinplate used for milk can containers

Standard

JIS

Material

MR

Grade

Prime

Annealing

BA/ CA

Thickness

0.16-0.58mm

Width

As customer required

Temper

T1, T2, T3, T4, T5, DR8, DR9

Coating(g/m2)

2.8g/m2

Surface Finish

Stone, Bright, Sliver, Matte

Packaging

Standard export packing or according to customer's requirements.

Payment

T/T or L/C



JIANGSU SENYILU METAL MATERIAL CO., LTD supplies different specifications of Double reduced (DR) tinplate and Single reduced (SR) tinplate. It can be used in many parts,such as food can, oil can and caps. At present, tinplates have been exported to many countries around the world, such as Egypt, Iran, Myanmar, Thailand and other countries. It is widely used in food packaging and chemical product packagings. We can provide high-quality tinplate that meets international standards.

T5 0.18mm Steel Tin Plate Food Grade For Milk Can Containers Stone Finish 0



Coating Structure

T5 0.18mm Steel Tin Plate Food Grade For Milk Can Containers Stone Finish 1

Production Process

T5 0.18mm Steel Tin Plate Food Grade For Milk Can Containers Stone Finish 2



Mechanical Properties

Temper Grade

Hardness(HR30Tm)

Yield Strength(MPa)

T-1

49±3

330

T-2

53±3

350

T-3

57±3

370

T-4

61±3

415

T-5

65±3

450

T-6

70±3

530

DR-7M

71±5

520

DR-8

73±5

550

DR-8M

73±5

580

DR-9

76±5

620

DR-9M

77±5

660

DR-10

80±5

690



Coating Weight

Former Coating Designation

Nominal Coating Weight
(g/m2)

Minimum average Coating Weight (g/m2)

10#

1.1/1.1

0.9/0.9

20#

2.2/2.2

1.8/1.8

25#

2.8/2.8

2.5/2.5

50#

5.6/5.6

5.2/5.2

75#

8.4/8.4

7.8/7.8

100#

11.2/11.2

10.1/10.1

25#/10#

2.8/1.1

2.5/0.9

50#/10#

5.6/1.1

5.2/0.9

75#/25#

5.6/2.8

5.2/2.5

75#/50#

8.4/2.8

7.8/2.5

75#/50#

8.4/5.6

7.8/5.2

100#/25#

11.2/2.8

10.1/2.5

100#/50#

11.2/5.6

10.1/5.2

100#/75#

11.2/8.4

10.1/7.8

125#/50#

15.1/5.6

13.9/5.2

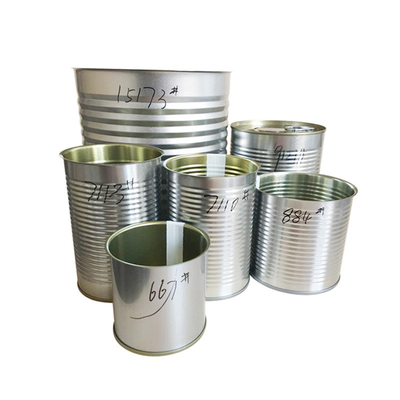

Applications

Tinplate is primarily used for packaging food stuffs and beverages,  it is also used in containers for oils, grease, paints, polishes, chemicals and many other products. Aerosol containers and caps and closures are also made from ETP plate.



T5 0.18mm Steel Tin Plate Food Grade For Milk Can Containers Stone Finish 3



T5 0.18mm Steel Tin Plate Food Grade For Milk Can Containers Stone Finish 4

T5 0.18mm Steel Tin Plate Food Grade For Milk Can Containers Stone Finish 5





FAQ:



Q1. What are your company's main products ?

A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.

Q2. How do you control quality ?

A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS.

Q3. What are the advantages of your company ?

A3: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.

Q4. How many coutries you already exported ?

A4: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.

Q5. Can you provide sample ?

A5: We can provide the samll samples in stock for free, as long as you contact us.

Customized samples will take about 5-7days.
