Double Sided Stone Finish Steel Tin Plate T5 For Baby Milk Cans 2.8G / M2
| MOQ: | 5tons |
| Price: | negotiated |
| Standard Packaging: | standard seaworthy package |
| Delivery Period: | 15-20days |
| Payment Method: | L/C,T/T,Western Union |
| Supply Capacity: | 10000Tons |
Double Sided Steel Tin Plate
,Stone Finish Steel Tin Plate
,T5 tin coated sheet
Stone Finish Steel Tin Plate T5 For Baby Milk Cans 2.8G / M2
Single-reduced tinplate is specified in nominal thick- nesses that are multiples of 0,005 mm, from 0,17 mm up to and including 0,49 mm.
Double-reduced tinplate is specified in nominal thicknesses that are multiples of 0,005 mm, from 0,14 mm up to and including 0,29 mm.
Tinplate consists of sheets of steel coated with a thin layer of tin to impede rusting. Before the advent of cheap milled steel, the backing
metal was wrought iron. While once more widely used, the primary use of tinplate now is the manufacture of tin cans.
Specifications
|
Product Name |
Stone Finish Steel Tin Plate T5 For Baby Milk Cans 2.8G / M2 |
|
Standard |
JIS |
|
Material |
MR |
|
Grade |
Prime |
|
Annealing |
BA/ CA |
|
Thickness |
0.16-1.1mm |
|
Width |
As customer required |
|
Temper |
T1, T2, T3, T4, T5 |
|
Coating(g/m2) |
2.8/2.8; 28/5.6 |
|
Surface Finish |
Stone, Bright, Sliver, Matte |
|
Packaging |
Standard export packing or according to customer's requirements. |
|
Payment |
T/T or L/C |
Wuxi talat steel co.ltd supplies different specifications of Double reduced (DR) tinplate and Single reduced (SR) tinplate. It can be used in many parts,such as food can, oil can and caps. At present, tinplates have been exported to many countries around the world, such as Egypt, Tunisia, Thailand and other countries. It is widely used in food packaging and chemical product packagings. We can provide high-quality tinplate that meets international standards.

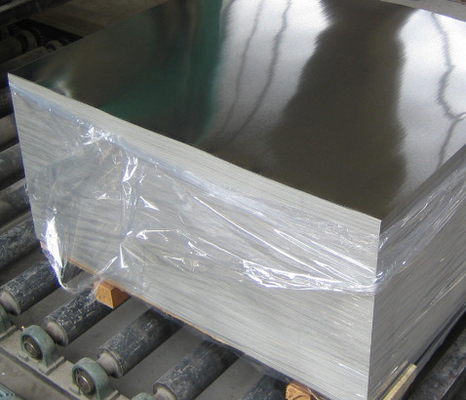

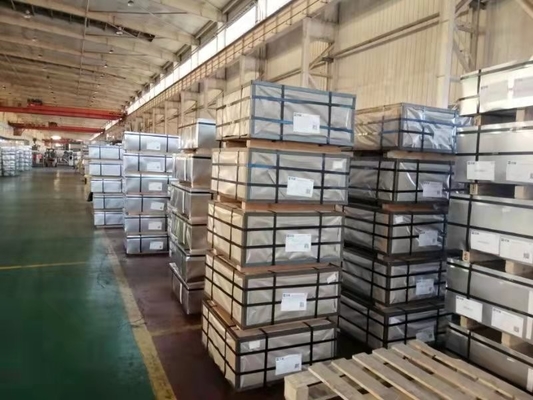

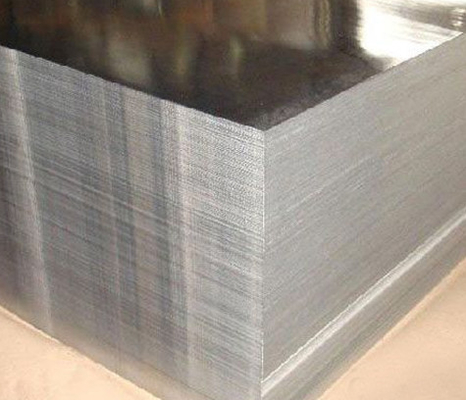

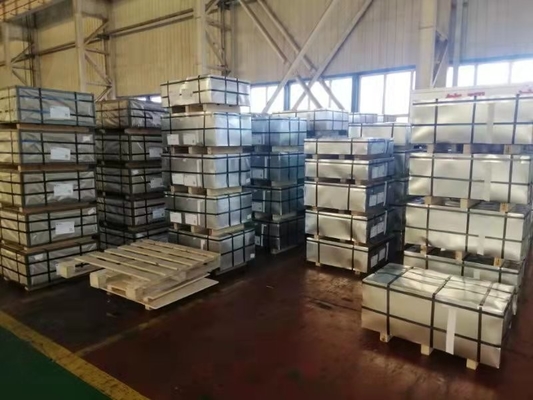

Product Display
Mechanical Properties
|
Temper Grade |
Hardness(HR30Tm) |
Yield Strength(MPa) |
|
T-1 |
49±3 |
330 |
|
T-2 |
53±3 |
350 |
|
T-3 |
57±3 |
370 |
|
T-4 |
61±3 |
415 |
|
T-5 |
65±3 |
450 |
|
T-6 |
70±3 |
530 |
|
DR-7M |
71±5 |
520 |
|
DR-8 |
73±5 |
550 |
|
DR-8M |
73±5 |
580 |
|
DR-9 |
76±5 |
620 |
|
DR-9M |
77±5 |
660 |
|
DR-10 |
80±5 |
690 |
Coating Weight
|
Former Coating Designation |
Nominal Coating Weight |
Minimum average Coating Weight (g/m2) |
|
10# |
1.1/1.1 |
0.9/0.9 |
|
20# |
2.2/2.2 |
1.8/1.8 |
|
25# |
2.8/2.8 |
2.5/2.5 |
|
50# |
5.6/5.6 |
5.2/5.2 |
|
75# |
8.4/8.4 |
7.8/7.8 |
|
100# |
11.2/11.2 |
10.1/10.1 |
|
25#/10# |
2.8/1.1 |
2.5/0.9 |
|
50#/10# |
5.6/1.1 |
5.2/0.9 |
|
75#/25# |
5.6/2.8 |
5.2/2.5 |
|
75#/50# |
8.4/2.8 |
7.8/2.5 |
|
75#/50# |
8.4/5.6 |
7.8/5.2 |
|
100#/25# |
11.2/2.8 |
10.1/2.5 |
|
100#/50# |
11.2/5.6 |
10.1/5.2 |
|
100#/75# |
11.2/8.4 |
10.1/7.8 |
|
125#/50# |
15.1/5.6 |
13.9/5.2 |
Applications
Tinplate is primarily used for packaging foodstuffs and beverages, but it is also used in containers for oils, grease, paints, polishes, chemicals and many other products. Aerosol containers and caps and closures are also made from ETP.
FAQ
1. What is tinplate? What is it mainly used for?
Tinplate is cold-rolled low-carbon steel sheet coated with a thin layer of tin on both surfaces. It combines the strength of steel with the corrosion resistance and solderability of tin.
Main applications:
Food packaging: Canned food, beverage cans, milk powder cans, cooking oil cans
Industrial packaging: Aerosol cans, paint cans, chemical containers
Consumer goods: Gift boxes, tea cans, battery shells, metal signs
2.Does tinplate rust? How do you prevent corrosion?
Tinplate is corrosion-resistant, but under extreme conditions (prolonged exposure to moisture, acids, or salt spray), rust may occur.
Our anti-rust measures:
DOS oil coating: Food-grade oil applied to the surface
Passivation treatment: Chromate passivation for enhanced corrosion resistance
Professional packaging: Moisture-proof paper and plastic film wrapping suitable for long ocean shipments
For applications requiring superior corrosion resistance, we also offer tin-free steel (TFS) .
3.Do you support custom sizes and printing?
Yes to both.
Custom cutting: We slit and shear coils to your exact sheet dimensions. Tolerances within ±0.1mm.
Custom printing: While we specialize in tinplate substrate, we work with trusted partner printing facilities. If you require pre-printed sheets (coating, printing, varnishing), we can arrange one-stop purchasing.
4.What packaging do you use for export?
We use standard export-ready packaging:
Inner: Moisture-proof kraft paper + anti-rust film
Outer: Galvanized steel strapping + wooden pallets or seaworthy wooden crates
Suitable for container loading and long-distance ocean freight
5.How do I get a quote?
Simply contact us with your specifications:
Thickness: ______ mm
Width: ______ mm
Tin coating: ______ g/m²
Temper: ______
Quantity: ______ tons
Destination port: ______
We will provide a detailed quotation within 2 hours.
