201 J1 J2 J3 J4 904 ASTM Bright 4 Mm Stainless Steel Rod
| MOQ: | 1 tons |
| Price: | negotiated |
| Standard Packaging: | Standard seaworthy export packing or as customer demands |
| Delivery Period: | negotiated |
| Payment Method: | L/C,T/T,Western Union |
| Supply Capacity: | 10000tons |
Detail Information
Place of Origin
China
Brand Name
Talat
Certification
Manufacture certificate
Model Number
200 series
Elongation:
16-30%
Coil Outer Diameter:
1000-1500mm
Payment Term:
L/C T/T Western Union
Grade:
200 Series
Specification:
600-1500mm
Yieldstrength:
210-450 MPa
Pay Terms:
T/T L/C
Packing:
Standard Seaworthy Package
Highlight:
201 4 mm stainless steel rod
,ASTM 4 mm stainless steel rod
,J4 904l stainless steel round bar
Product Description
201 J1 J2 J3 J4 904 ASTM Bright 4 Mm Stainless Steel Rod
Product Overview
ASTM 201 J1 J2 J3 J4 Stainless Steel Bright Bar OD 4mm
Grade Comparison & Properties
Corrosion Resistance (Best to Worst)
- J3 > 201 (J1) > J4 > J2
- J3 offers superior resistance to pitting and uniform corrosion due to high nickel and low copper content
- J2 may experience reduced corrosion resistance in chloride-containing environments
Formability & Deep Drawing Performance (Best to Worst)
- J2 > 201 (J1) ≈ J3 > J4
- J2's copper content significantly improves ductility and cold working properties
- J4 is most difficult to form due to high nitrogen content and work hardening
Strength & Hardness (Highest to Lowest)
- J4 > 201 (J1) ≈ J3 > J2
- Nitrogen in J4 provides effective solid solution strengthening
- J2 has relatively lower strength
Weldability
All 201 series stainless steels have poorer weldability than 304 stainless steel. Weld areas are prone to corrosion resistance reduction due to chromium carbide precipitation. J4's high nitrogen content may further worsen weldability, and J2's uneven composition also results in generally poor weldability.

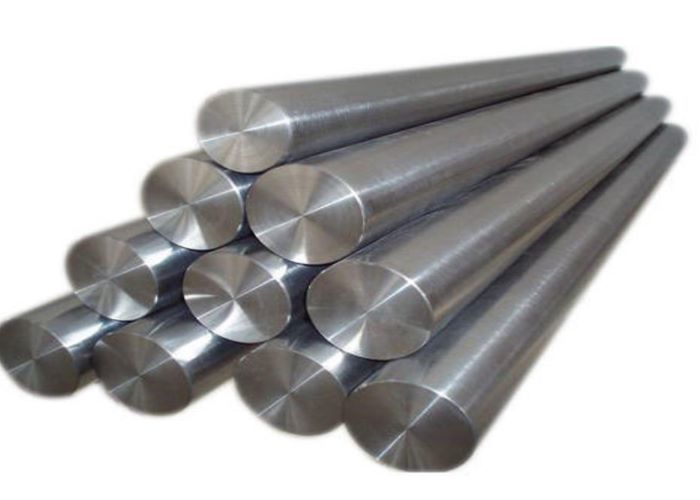

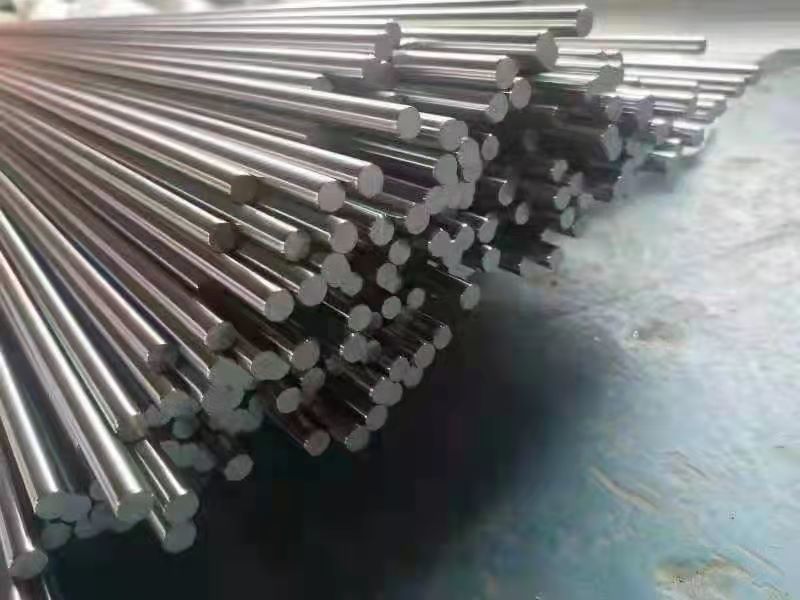

Product Images
Material Alloy Specifications
| DIN/EN | UNS | Ingredient | Grade |
|---|---|---|---|
| 2.4060 | N02000 | 99Ni-0.15Fe-0.2Mn-0.1Si-0.1Cu-0.1C | Nickl200 |
| 2.4601 | N02201 | 99Ni-0.15Fe-0.2Mn-0.1Si-0.1Cu-0.01C | Nickl201 |
| 2.4050 | N02270 | 99.9Ni-0.02Fe-0.001Mn-0.002Si-0.005Cu-0.01C | Nickl270 |
| 1.4980 | S66286 | 25Ni-15Cr-1.5Mo-2Ti-1Mg-0.03C | INCOLOY Alloy A286 |
| N08367 | 25Ni-20Cr-6.3MO-0.25Cu-0.2N-0.01P-0.05S-0.01C | INCOLOY Alloy 25-6HN | |
| 1.4529 | N08926 | INCOLOY Alloy 25-6Mo | |
| 2.4460 | N08020 | 36Ni-21Cr-3.5Cu2.5Mo-1Mn-0.01C | INCOLOY Alloy 20 |
| 1.4563 | N08028 | 32Ni-27Cr-3.5Mo-1Cu-0.01C | INCOLOY Alloy 28 |
| 1.4886 | N08330 | 35Ni-18Cr-2Mg-1SI-0.03C | INCOLOY Alloy 330 |
| 1.4876 | N08800 | 32Ni-21Cr-0.3~1.2(Al+Ti)0.02C | INCOLOY Alloy 800 |
| 1.4876 | N08810 | 32Ni-21Cr-0.3~1.2(Al+Ti)0.08C | INCOLOY Alloy 800H |
| 2.4858 | N08825 | 42Ni-21Cr-3Mo-2Cu-0.8Ti-0.1AI-0.02C | INCOLOY Alloy 825 |
| 2.4816 | N06600 | 72Ni-151Cr-8Fr-0.2Cu-0.02C | INCONEL Alloy 600 |
| 2.4851 | N06601 | 60Ni-22Cr-1.2Al-0.02C | INCONEL Alloy 601 |
| 2.4856 | N06625 | 58Ni-21Cr-9Mo-3.5Nb-1CO-0.02C | INCONEL Alloy 625 |
| 2.4856 | N06626 | 58Ni-21Cr-9Mo-3.5Nb-1CO-0.02C | INCONEL Alloy 625LCF |
| 2.4606 | N06686 | 57Ni-21Cr-16Mo-4W-0.01C | INCONEL Alloy 686 |
| 2.4642 | N06690 | 58Ni-30Cr-9Fe-0.2Cu-0.02C | INCONEL Alloy 690 |
| 2.4668 | N07718 | 52Ni-19Cr-5Nb-3Mo-1Ti-0.6Al-0.02C | INCONEL Alloy 718 |
| 2.4669 | N07750 | 70Ni-15Cr-6Fe-2.5Ti-0.06Al-1Nb-0.02C | INCONEL Alloy X-750 |
| 2.4360 | N04400 | 63Ni-32Cu-1Fe-0.1C | MONEL400 |
| 2.4375 | N05500 | 63Ni-30Cr-1Fe-3Al-0.6Ti-0.1C | MONEL K-500 |
| 2.4819 | N10276 | 57Ni-16Mo-16Cr-5Fe-4W-2.5Co-1Mn-0.35V-0.08Si-0.01C | Hastelloy C-276 |
| 2.4610 | N06455 | 65Ni-16Cr-16Mo-0.7Ti-3Fe-2Co-1Mn-0.08Si-0.01C | Hastelloy C-4 |
| 2.4602 | N06022 | 56Ni-22Cr-13Mo-3Fe-2.5Co-0.5Mn-0.35V-0.08Si-0.01C | Hastelloy C-22 |
| 2.4675 | N06200 | 59Ni-23Cr-16Mo-1.6Cu-0.08Si-0.01C | Hastelloy C-2000 |
| 2.4665 | N06002 | 47Ni-22Cr-18Fe-9Mo-1.5Co-0.6W-0.1C-1mn-1Si-0.008B | Hastelloy X |
| 2.4617 | N10665 | 69Ni-28Mo-0.5Cr-1.8Fe-3W-1.0Co-1.0Mn-0.01C | Hastelloy B-2 |
| 2.4660 | N10675 | 65Ni-28.5Mo-1.5Cr-1.5Fe-3W-3Co-3Mn-0.01C | Hastelloy B-3 |
| N06030 | 43Ni-30Cr-15Fe-5.5Mo-2.5W-5Co-2Cu-1.5Mn-0.03C | Hastelloy G-30 | |
| N06035 | 58Ni-33Cr-8Mo-2Fe-0.6Si-0.3Cu-0.03C | Hastelloy G-35 | |
| 1.4562 | N08031 | 31Ni-27Cr-6.5Mo-1.2Cu-2mn-0.01C | Nicrofer hMo31 |
| 2.4605 | N06059 | 59Ni-23Cr-16Mo-1.0Fe-0.01C | Nicrofer hMo59 |
Applications
Packaging & Delivery
Container Specifications:
- 20ft GP: 5898mm (Length) × 2352mm (Width) × 2393mm (Height)
- 40ft GP: 12032mm (Length) × 2352mm (Width) × 2393mm (Height)
- 40ft HC: 12032mm (Length) × 2352mm (Width) × 2698mm (Height)
Standard Export Seaworthy Package. Suitable for all kinds of transport, or as required.
Delivery: 10-15 work days
