ASTM A106 Pressure Pipes Grade B High Temperature High Pressure Fluid Transportation
| MOQ: | 1 ton |
| Price: | negotiate |
| Standard Packaging: | Standard seaworthy export packing or as customer demands |
| Delivery Period: | 7-15days |
| Payment Method: | T/T,L/C,Western Union |
| Supply Capacity: | 10000tons |
ASTM pressure pipes
,A106 pressure pipes
,Grade B cs seamless pipe

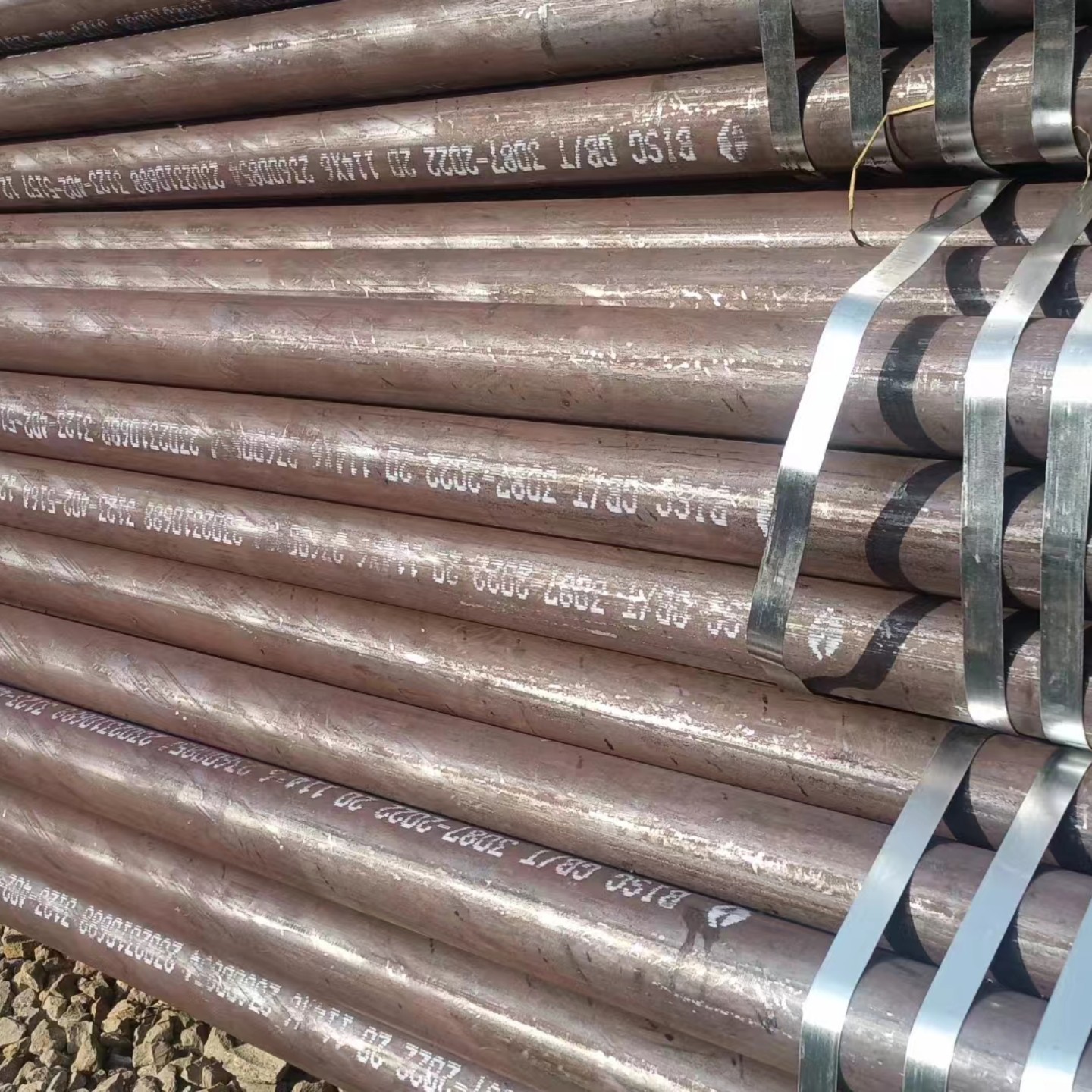

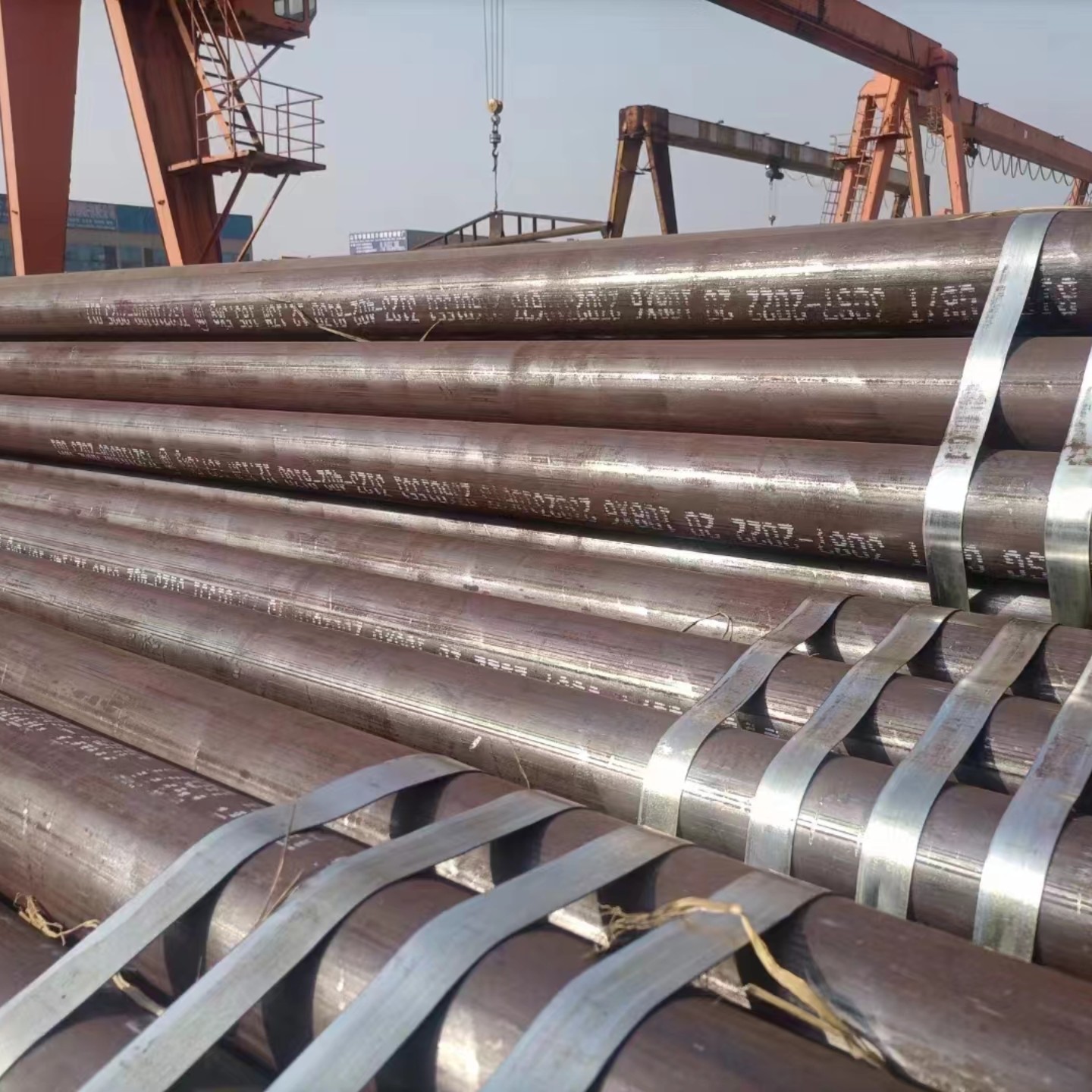

Pressure Pipes ASTM A106 Grade B designed for high-temperature and high-pressure fluid transportation applications.
Seamless: Seamless steel pipe is required to ensure integrity and safety under high temperature and pressure conditions.
- Grade B: The most commonly used and prevalent grade. Excellent mechanical properties (especially high-temperature performance) with moderate pricing. Yield strength ≥ 240 MPa, tensile strength ≥ 415 MPa.
- Grade C: Highest strength and carbon content. Used for applications requiring higher strength, with relatively poorer weldability. Yield strength ≥ 275 MPa, tensile strength ≥ 485 MPa.
- Grade A: Lowest strength, less commonly used. Typically for low-temperature or low-pressure applications where seamless pipe is required.
Chemical Composition Control: Stricter control over elements including carbon, manganese, phosphorus, and sulfur compared to ASTM A53, with higher carbon and manganese content to ensure high-temperature strength.
Heat Treatment Requirements: Normalizing heat treatment is typically required, resulting in uniform material structure and refined grains. This significantly improves high-temperature creep strength and long-term service stability - key to A106's suitability for high-temperature environments.
High-Temperature Performance: The ASTM A106 standard includes minimum yield strength tables at high temperatures. A106 Gr.B maintains sufficient strength even at temperatures up to 400°C (approximately 750°F), a fundamental difference from ordinary fluid pipes like A53.
Packing: Export standard package, bundled or as required.
Delivery Time: According to order quantity.
Shipping Methods: By sea (Container or Bulk); By air or express for small size samples.
| Container Type | Dimensions |
|---|---|
| 20ft GP | 5.8m(length) × 2.13m(width) × 2.18m(height) |
| 40ft GP | 11.8m(length) × 2.13m(width) × 2.18m(height) |
| 40ft HG | 11.8m(length) × 2.13m(width) × 2.72m(height) |
