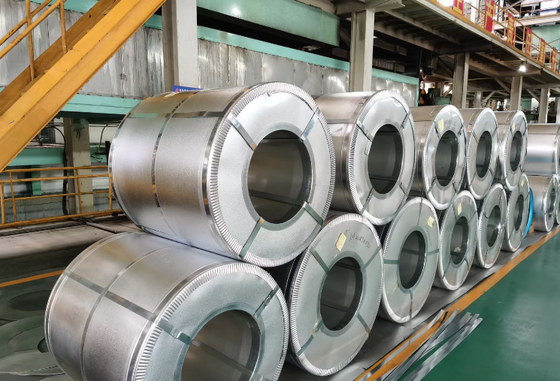

Zinc Coating Galvanized Steel Coils DDQ EDDQ Basic Coils 0.12mm-1.2mm Thickness
Product Details
| Item: | Hot-dipped Galvanised Steel Coil | Sample: | Sample Freely |
|---|---|---|---|
| Price Term: | FOB CIF CFR | Coil Width: | 600-1500 Mm |
| Spangle: | Regular/Zero/Big | Surface Finish: | Spangle Or Non-Spangle |
| Surface Treatment: | Galvanized | Thickness: | 0.12-6mm Or Customer's Requirement |
| Highlight |
Zinc Coating Galvanized Steel Coils,0.12mm Galvanized Steel Coils,1.2mm zinc coating coils |
||
Product Description
| Standard | AISI, ASTM, BS, DIN, GB, JIS |
|---|---|
| Type | GI GL Sheet And Coil zinc coating coils DDQ EDDQ Basic coils 0.12mm-1.2mm Thickness |
| Surface | Galvanized Coated |
| Surface Structure | Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS) |
| Zinc Coating | 60-275g/m² |
| Thickness | 0.12mm-4.0mm |
| Width | 600mm-1250mm |
| Coil Weight | 3-5 Tons or Required |
| Coil ID | 508mm/610mm |
| Coating | PE/PVDF/HDP/SMP |
| Top Painting | 10-35 Microns |
| Back Painting | 5-35 Microns |
| MOQ | 5 Tons (1 20ft FCL) |
| Payment Term | T/T (30% Deposit + 70%) |
- Low processing cost: The cost of hot-dip galvanizing and rust prevention is lower than that of other paint coatings
- Multi-faceted protection: Each part of the plated components can be coated with zinc, even in recesses, sharp corners and hidden places for comprehensive protection
- Simple inspection: The hot-dip galvanized layer can be tested visually and with simple non-destructive coating thickness measurement
| Grade | Coating Mass (g/m²) | Typical Application |
|---|---|---|
| Z40-Z80 | 40-80 | Indoor use, light protection |
| Z100-Z140 | 100-140 | General construction, roofing |
| Z180-Z275 | 180-275 | Heavy industry, structural components |
| Z350-Z450 | 350-450 | Coastal areas, high-corrosion environments |
- ASTM A653 - American Standard
- JIS G3302 - Japanese Standard
- EN 10346 - European Standard
- GB/T 2518 - Chinese Standard
| Type | Description | Best For |
|---|---|---|
| Regular Spangle | Visible snowflake-like crystals | Applications where appearance is not critical; prepainted base |
| Zero Spangle (Minimal Spangle) | Smooth, uniform surface with no visible crystals | Painting applications, prepainted steel, automotive parts, where surface smoothness matters |
- Poor ventilation during storage
- High humidity or condensation
- Direct contact with rainwater
- Passivation treatment - We apply chromate or chromium-free passivation before shipment
- Oil coating - Anti-rust oil can be applied for ocean freight shipments
- Proper storage - Store in a dry, ventilated warehouse; avoid outdoor storage
