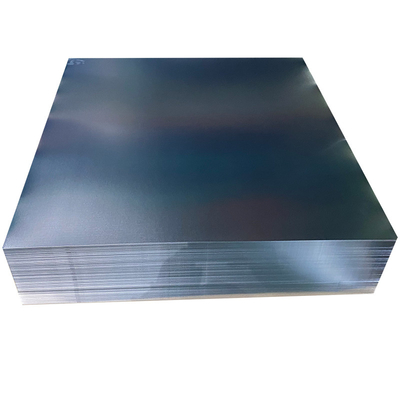

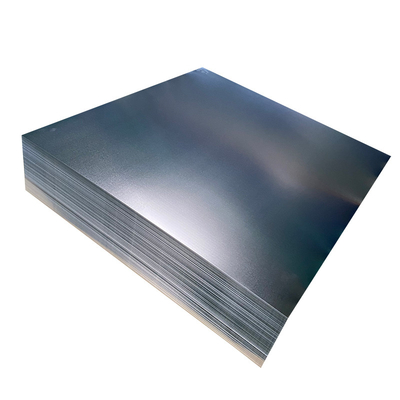

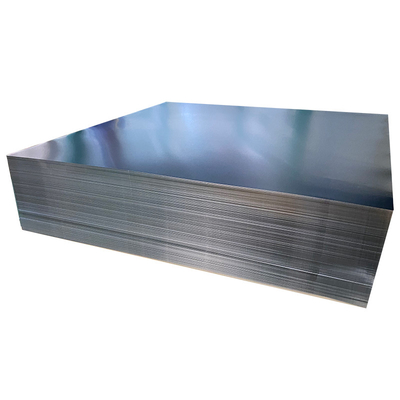

Food Grade T3 Steel Tin Plate 0.19mm For Cannery And Cans Containers

Food Grade T3 Steel Tin Plate 0.19mm For Cannery And Cans Containers
Food Grade T3 Steel Tin Plate 0.19mm For Cannery And Cans Containers
Food Grade T3 Steel Tin Plate 0.19mm For Cannery And Cans Containers Food Grade T3 Steel Tin Plate 0.19mm For Cannery And Cans Containers Food Grade T3 Steel Tin Plate 0.19mm For Cannery And Cans Containers Food Grade T3 Steel Tin Plate 0.19mm For Cannery And Cans Containers

Large Image :  Food Grade T3 Steel Tin Plate 0.19mm For Cannery And Cans Containers

Product Details:
Place of Origin: CHINA
Brand Name: SYL
Certification: CE ISO
Model Number: tinplate
Payment & Shipping Terms:
Minimum Order Quantity: 5ton
Price: $800-1000/Metric Ton
Packaging Details: Standard seaworthy export packing or as customer demands
Delivery Time: 7-15 work days
Payment Terms: T/T, Western Union, L/C, D/A, D/P
Supply Ability: 2000 Ton/Tons per Month

Food Grade T3 Steel Tin Plate 0.19mm For Cannery And Cans Containers

Description
Product Name: Food Grade Tin Plate For Cannery And Tin Cans Containers Technique: Cold Rolled
Thickness: 0.16mm; 0.18mm; 0.19mm; 0.20mm Surface: Stone Finished, Bright Finish And Matte Finish
Standard: JIS Material: MR; SPCC
Temper: T1, T2, T3, T4, T5 Type: Steel Plate
High Light:

Food Grade Tinplate For Cannery

,

Steel Tin Plate 0.19mm

,

T3 Steel Tin Plate

Food Grade Tin Plate For Cannery And Tin Cans Containers



Product Introduction



The basic plate of this tinplate sheet is SPCC, as we all know tin layer works as a safe substance between the metal and the food. Tin helps utensils made of brass and copper increase its conductivity which also reduces the fuel cost. With regular intervals re-tinning, it also maintains the taste of the food.



What makes tin sustainable? Tin is considered to be a sustainable packaging substrate because it is completely recyclable, meaning that it can be processed and returned to the production cycle without a loss of quality.



Specifications



Product Name

Food Grade Tin Plate For Cannery And Tin Cans Containers

Standard

JIS

Material

MR; SPCC

Grade

Prime

Annealing

BA/ CA

Thickness

0.16-1.0mm

Width

As customer required and ordered

Temper

T1, T2, T3, T4, T5, DR-7m, DR-8, DR-8m

Coating(g/m2)

1.1/1.1  2.0/2.0  2.8/2.8

Surface Finish

Stone finish; Bright finish

Packaging

Standard export packing or according to customer's requirements.

Payment

T/T or L/C



JIANGSU SENYILU METAL MATERIAL CO., LTD supplies different specifications of Double reduced (DR) tinplate and Single reduced (SR) tinplate.



It can be used in many parts,such as food can, oil cans and caps. At present, tinplates have been exported to many countries around the world, such as Egypt, Russia, Myanmar, Thailand and other countries. It is widely used in food packaging and chemical product packagings. We can provide high-quality tinplates that meet international standards.

Food Grade T3 Steel Tin Plate 0.19mm For Cannery And Cans Containers 0



Coating Structure

Food Grade T3 Steel Tin Plate 0.19mm For Cannery And Cans Containers 1

Production Process

Food Grade T3 Steel Tin Plate 0.19mm For Cannery And Cans Containers 2



Mechanical Properties

Temper Grade

Hardness(HR30Tm)

Yield Strength(MPa)

T-1

49±3

330

T-2

53±3

350

T-3

57±3

370

T-4

61±3

415

T-5

65±3

450

T-6

70±3

530

DR-7M

71±5

520

DR-8

73±5

550

DR-8M

73±5

580

DR-9

76±5

620

DR-9M

77±5

660

DR-10

80±5

690



Coating Weight

Former Coating Designation

Nominal Coating Weight
(g/m2)

Minimum average Coating Weight (g/m2)

10#

1.1/1.1

0.9/0.9

20#

2.2/2.2

1.8/1.8

25#

2.8/2.8

2.5/2.5

50#

5.6/5.6

5.2/5.2

75#

8.4/8.4

7.8/7.8

100#

11.2/11.2

10.1/10.1

25#/10#

2.8/1.1

2.5/0.9

50#/10#

5.6/1.1

5.2/0.9

75#/25#

5.6/2.8

5.2/2.5

75#/50#

8.4/2.8

7.8/2.5

75#/50#

8.4/5.6

7.8/5.2

100#/25#

11.2/2.8

10.1/2.5

100#/50#

11.2/5.6

10.1/5.2

100#/75#

11.2/8.4

10.1/7.8

125#/50#

15.1/5.6

13.9/5.2



Applications

Tinplate is primarily used for packaging foodstuffs and beverages, but it is also used in containers for oils, grease, paints, polishes, chemicals and many other products. Aerosol containers and caps and closures are also made from ETP.

Food Grade T3 Steel Tin Plate 0.19mm For Cannery And Cans Containers 3

Food Grade T3 Steel Tin Plate 0.19mm For Cannery And Cans Containers 4



FAQ:



Q1. What are your company's main products ?

A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.

Q2. How do you control quality ?

A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS.

Q3. What are the advantages of your company ?

A3: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.

Q4. How many coutries you already exported ?

A4: Exported to more than 50 countries mainly to Egypt, Russia, Myanmar, Thailand etc.

Q5. Can you provide sample ?

A5: We can provide the samll samples in stock for free, as long as you contact us.

Customized samples will take about 5-7days.
