Product Details:
|
Thickness: | 0.16mm-0.24mm | Type: | Steel Coil, Steel Plate |
---|---|---|---|
Product Name: | Prime Grade T3 ETP Steel Tin Plate Tinplate For Containers Of Food | Colour: | Tin Colour |
Application: | Tin Cans And Cannery | Base Plate: | MR |
Tin Coating: | 5.6/2.8 | Length: | 500mm--980mm |
Surface: | Stone Finish R1 | Temper: | T3-T5 |
Highlight: | T3 ETP Steel Tin plate,980mm Steel Tin plate,Stone finish R1 Steel Tin plate |

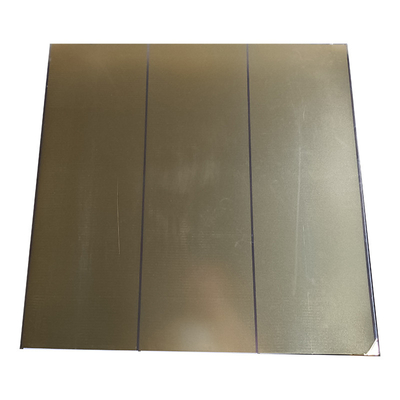

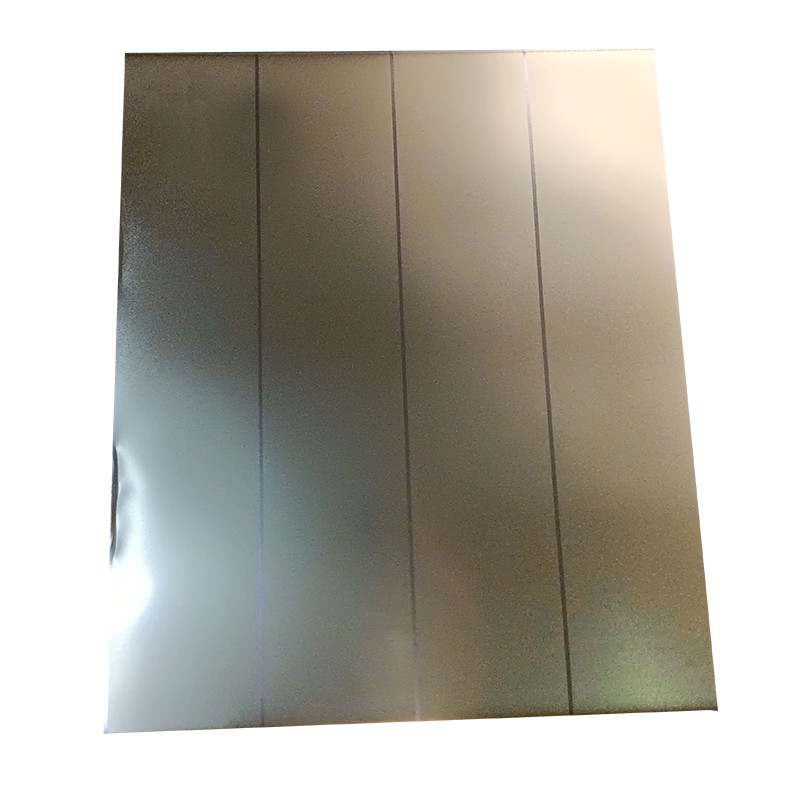

Prime Grade T3 ETP Steel Tin plate tinplate for containers of food
Product Introduction
Tin-plate packaging has a wide range of coverage in the packaging industry because of its good sealing, preservation, light-proof, ruggedness and unique metal decoration charm. Because of its strong antioxidant, diverse styles and exquisite printing, tinplate packaging container is popular with customers, and widely used in food packaging, pharmaceutical packaging, commodity packaging, instrument packaging, industrial packaging and so on.
Nowadays roughly half of all tin produced is used in soldering application.Tin is also used in the production of pewter, bronze and phosphorous bronze. Tin salts are sometimes sprayed onto windshields and window glass to provide an electrically conductive coating. The window glass itself is often made by floating molten glass onto molten tin, which produces a flat surface. The metal used to manufacture bells is often a combination of bronze and tin. Additionally, tin and tin alloys offer tremendous value for electroplating, which is the process of depositing a coating of metal onto the surface of a material via an electrical current.
Specifications
Product Name |
Prime Grade T3 ETP Steel Tin plate tinplate for containers of food |
Standard |
JIS |
Material |
MR |
Grade |
Prime |
Annealing |
BA/ CA |
Thickness |
0.16-0.58mm |
Width |
As customer required |
Temper |
T1, T2, T3, T4, T5, DR8, DR9 |
Coating(g/m2) |
2.8g/m2 |
Surface Finish |
Stone, Bright, Sliver, Matte |
Packaging |
Standard export packing or according to customer's requirements. |
Payment |
T/T or L/C |
JIANGSU SENYILU METAL MATERIAL CO., LTD supplies different specifications of Double reduced (DR) tinplate and Single reduced (SR) tinplate. It can be used in many parts,such as food can, oil can and caps. At present, tinplates have been exported to many countries around the world, such as Egypt, Iran, Myanmar, Thailand and other countries. It is widely used in food packaging and chemical product packagings. We can provide high-quality tinplate that meets international standards.
Coating Structure
Production Process
Mechanical Properties
Temper Grade |
Hardness(HR30Tm) |
Yield Strength(MPa) |
T-1 |
49±3 |
330 |
T-2 |
53±3 |
350 |
T-3 |
57±3 |
370 |
T-4 |
61±3 |
415 |
T-5 |
65±3 |
450 |
T-6 |
70±3 |
530 |
DR-7M |
71±5 |
520 |
DR-8 |
73±5 |
550 |
DR-8M |
73±5 |
580 |
DR-9 |
76±5 |
620 |
DR-9M |
77±5 |
660 |
DR-10 |
80±5 |
690 |
Coating Weight
Former Coating Designation |
Nominal Coating Weight |
Minimum average Coating Weight (g/m2) |
10# |
1.1/1.1 |
0.9/0.9 |
20# |
2.2/2.2 |
1.8/1.8 |
25# |
2.8/2.8 |
2.5/2.5 |
50# |
5.6/5.6 |
5.2/5.2 |
75# |
8.4/8.4 |
7.8/7.8 |
100# |
11.2/11.2 |
10.1/10.1 |
25#/10# |
2.8/1.1 |
2.5/0.9 |
50#/10# |
5.6/1.1 |
5.2/0.9 |
75#/25# |
5.6/2.8 |
5.2/2.5 |
75#/50# |
8.4/2.8 |
7.8/2.5 |
75#/50# |
8.4/5.6 |
7.8/5.2 |
100#/25# |
11.2/2.8 |
10.1/2.5 |
100#/50# |
11.2/5.6 |
10.1/5.2 |
100#/75# |
11.2/8.4 |
10.1/7.8 |
125#/50# |
15.1/5.6 |
13.9/5.2 |
Applications
Tinplate is primarily used for packaging food stuffs and beverages, it is also used in containers for oils, grease, paints, polishes, chemicals and many other products. Aerosol containers and caps and closures are also made from ETP plate.
FAQ:
Q1. What are your company's main products ?
A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.
Q2. How do you control quality ?
A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS.
Q3. What are the advantages of your company ?
A3: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.
Q4. How many coutries you already exported ?
A4: Exported to more than 50 countries mainly from America, , UK, Kuwait, Egypt, Turkey, Jordan,India, etc.
Q5. Can you provide sample ?
A5: We can provide the samll samples in stock for free, as long as you contact us.
Customized samples will take about 5-7days.
