Product Details:
|
| Product Name: | High Corrosion Resistance Food Grade ETP Tinplate For Tin Cans Containers/cannery | Technique: | Cold Rolled |
|---|---|---|---|
| Surface: | Bright/ Stone | Base Plate: | MR; L |
| Length: | 550mm--980mm | Thickness: | 0.16mm-0.18mm |
| Temper: | T3-T5 | Colour: | Tin Colour |
| Application: | Tin Cans And Cannery | Tin Coating: | 2.8g/m2; 5.6g/m2 |
| High Light: | High Corrosion Resistance ETP Tinplate,550 mm ETP Tin plate,T5 Steel Tin Plate |
||

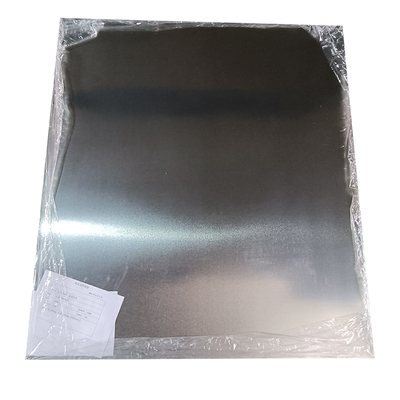

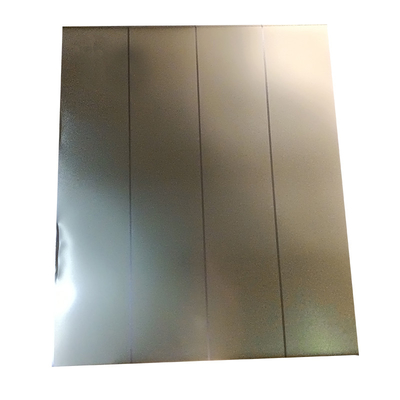

High Corrosion Resistance Food grade ETP tinplate for Tin Cans Containers/cannery
Product Introduction
A majority of tinplate products have been used by the container industry in the manufacturing of closures and cans but today, there has been more demand for tin coated steel in the appliance and automotive markets. Tinplate and tin coated steel have a wide array of uses including but not limited to:
Specifications
|
Product Name |
High Corrosion Resistance Food grade ETP tinplate for Tin Cans Containers/cannery |
|
Standard |
JIS |
|
Material |
MR |
|
Grade |
Prime |
|
Annealing |
BA/ CA |
|
Thickness |
0.16-0.58mm |
|
Width |
As customer required |
|
Temper |
T1, T2, T3, T4, T5, DR8, DR9 |
|
Coating(g/m2) |
2.8g/m2 |
|
Surface Finish |
Stone, Bright, Sliver, Matte |
|
Packaging |
Standard export packing or according to customer's requirements. |
|
Payment |
T/T or L/C |
JIANGSU SENYILU METAL MATERIAL CO., LTD supplies different specifications of Double reduced (DR) tinplate and Single reduced (SR) tinplate. It can be used in many parts,such as food can, oil can and caps. At present, tinplates have been exported to many countries around the world, such as Egypt, Iran, Myanmar, Thailand and other countries. It is widely used in food packaging and chemical product packagings. We can provide high-quality tinplate that meets international standards.
Coating Structure
Production Process
Mechanical Properties
|
Temper Grade |
Hardness(HR30Tm) |
Yield Strength(MPa) |
|
T-1 |
49±3 |
330 |
|
T-2 |
53±3 |
350 |
|
T-3 |
57±3 |
370 |
|
T-4 |
61±3 |
415 |
|
T-5 |
65±3 |
450 |
|
T-6 |
70±3 |
530 |
|
DR-7M |
71±5 |
520 |
|
DR-8 |
73±5 |
550 |
|
DR-8M |
73±5 |
580 |
|
DR-9 |
76±5 |
620 |
|
DR-9M |
77±5 |
660 |
|
DR-10 |
80±5 |
690 |
Coating Weight
|
Former Coating Designation |
Nominal Coating Weight |
Minimum average Coating Weight (g/m2) |
|
10# |
1.1/1.1 |
0.9/0.9 |
|
20# |
2.2/2.2 |
1.8/1.8 |
|
25# |
2.8/2.8 |
2.5/2.5 |
|
50# |
5.6/5.6 |
5.2/5.2 |
|
75# |
8.4/8.4 |
7.8/7.8 |
|
100# |
11.2/11.2 |
10.1/10.1 |
|
25#/10# |
2.8/1.1 |
2.5/0.9 |
|
50#/10# |
5.6/1.1 |
5.2/0.9 |
|
75#/25# |
5.6/2.8 |
5.2/2.5 |
|
75#/50# |
8.4/2.8 |
7.8/2.5 |
|
75#/50# |
8.4/5.6 |
7.8/5.2 |
|
100#/25# |
11.2/2.8 |
10.1/2.5 |
|
100#/50# |
11.2/5.6 |
10.1/5.2 |
|
100#/75# |
11.2/8.4 |
10.1/7.8 |
|
125#/50# |
15.1/5.6 |
13.9/5.2 |
Applications
Tinplate is primarily used for packaging food stuffs and beverages, it is also used in containers for oils, grease, paints, polishes, chemicals and many other products. Aerosol containers and caps and closures are also made from ETP plate.
