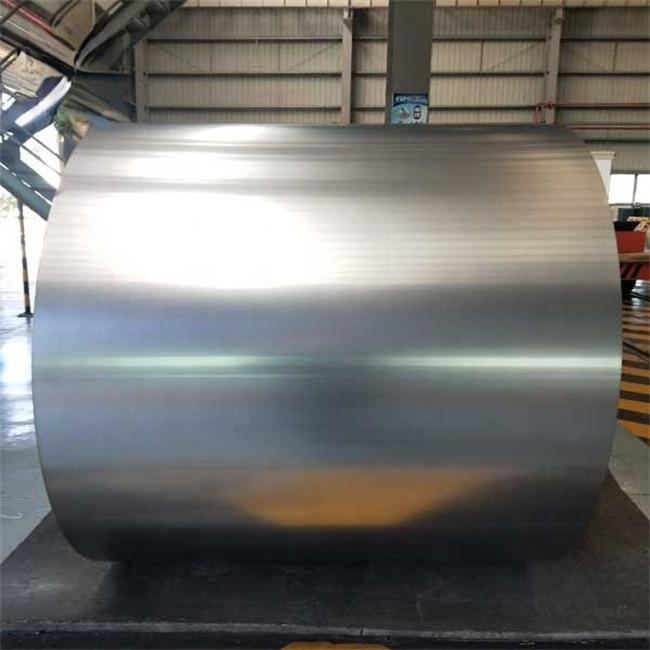

JIS Standard 20 Feet Tinplate Sheet /Coil Width 300mm

JIS Standard 20 Feet Tinplate Sheet /Coil Width 300mm
JIS Standard 20 Feet Tinplate Sheet /Coil Width 300mm
JIS Standard 20 Feet Tinplate Sheet /Coil Width 300mm JIS Standard 20 Feet Tinplate Sheet /Coil Width 300mm JIS Standard 20 Feet Tinplate Sheet /Coil Width 300mm JIS Standard 20 Feet Tinplate Sheet /Coil Width 300mm JIS Standard 20 Feet Tinplate Sheet /Coil Width 300mm

Large Image :  JIS Standard 20 Feet Tinplate Sheet /Coil Width 300mm

Product Details:
Place of Origin: CHINA
Brand Name: SYL
Certification: CE ISO
Model Number: tinplate
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: $400-680/Metric Ton
Packaging Details: Standard seaworthy export packing or as customer demands
Delivery Time: 7-15 work days
Payment Terms: T/T, Western Union, L/C, D/A, D/P
Supply Ability: 5000 Ton/Tons per Month

JIS Standard 20 Feet Tinplate Sheet /Coil Width 300mm

Description
Tolerance:: ±1% Thickness:: 0.16-3.0mm
Packing: According To Customer Needs Width:: 300-1500mm,etc
Standard: JIS EN Hardness:: T1-T5
Tin Coating: 1.1-5.6 Shape:: Coil/sheet
Model Number:: T1,T2,T3,T4,T5 Certificate:: ISO9001,ce
Thickness Tolerance: -+0.005mm MOQ:: 1 Ton
High Light:

20 feet tinplate sheet

,

jis standard tinplate sheet

,

20 feet steel tin plate

JIS Standard 20 Feet Tinplate Sheet Width 300mm



What is Tinplate?



Tinplate (SPTE),is tin plated on both sides of the iron sheet, that is, cold rolled low carbon thin steel plate, rust resistance, corrosion resistance, non-toxic. Mainly used for making metal packaging, including canned food, beverage, chemical, medicine, sanitation, coatings, paints, sprays, cosmetic caps and so on.




JIS Standard 20 Feet Tinplate Sheet /Coil Width 300mm 0

Specifications
Product Name
Tinplate(SPTE/ETP)
Standard
JIS,EN
Material
MR SPCC
Grade
Prime
Annealing
BA/CA
Thickness
0.16-3.0mm
Width
600-1500mm
Temper
T1, T2, T3, T4, T5, DR7, DR8, DR9, TH550, TH580, TH620, TH660
Coating(g/m2)
1.1/1, 2.0/2.0, 2.8/2.8, 2.8/5.6, 5.6/5.6, 8.4/8.4, 11.2/11.2, etc
Surface Finish
Stone, Bright, Silver
Packaging
Standard export packing.
or according to customer's requirements.
Payment
T/T or L/C or D/P

Product Introduction

Tinplate(SPTE) is a common name for electroplated tin steel sheets, which refers to cold-rolled low-carbon steel sheets or strips coated with commercial pure tin on both sides. Tin mainly acts to prevent corrosion and rust. It combines the strength and formability of steel with the corrosion resistance, solderability and aesthetic appearance of tin in a material with corrosion resistance, non-toxicity, high strength and good ductility.Tin-plate packaging has a wide range of coverage in the packaging industry because of its good sealing, preservation, light-proof, ruggedness and unique metal decoration charm. Because of its strong antioxidant, diverse styles and exquisite printing, tinplate packaging container is popular with customers, and widely used in food packaging, pharmaceutical packaging, commodity packaging, instrument packaging, industrial packaging and so on.

JIS Standard 20 Feet Tinplate Sheet /Coil Width 300mm 1JIS Standard 20 Feet Tinplate Sheet /Coil Width 300mm 2JIS Standard 20 Feet Tinplate Sheet /Coil Width 300mm 3JIS Standard 20 Feet Tinplate Sheet /Coil Width 300mm 4


JIS Standard 20 Feet Tinplate Sheet /Coil Width 300mm 5

Mechanical Properties
Temper Grade
Hardness(HR30Tm)
Yield Strength(MPa)
T-1
49±3
330
T-2
53±3
350
T-3
57±3
370
T-4
61±3
415
T-5
65±3
450
T-6
70±3
530
DR-7M
71±5
520
DR-8
73±5
550
DR-8M
73±5
580
DR-9
76±5
620
DR-9M
77±5
660
DR-10
80±5
690



Coating Weight



Former Coating Designation
Nominal Coating Weight
(g/m2)
Minimum average Coating Weight (g/m2)
10#
1.1/1.1
0.9/0.9
20#
2.2/2.2
1.8/1.8
25#
2.8/2.8
2.5/2.5
50#
5.6/5.6
5.2/5.2
75#
8.4/8.4
7.8/7.8
100#
11.2/11.2
10.1/10.1
25#/10#
2.8/1.1
2.5/0.9
50#/10#
5.6/1.1
5.2/0.9
75#/25#
5.6/2.8
5.2/2.5
75#/50#
8.4/2.8
7.8/2.5
75#/50#
8.4/5.6
7.8/5.2
100#/25#
11.2/2.8
10.1/2.5
100#/50#
11.2/5.6
10.1/5.2
100#/75#
11.2/8.4
10.1/7.8
125#/50#
15.1/5.6
13.9/5.2


Applications

Tinplate is primarily used for packaging foodstuffs and beverages, but it is also used in containers for oils, grease, paints, polishes, chemicals and many other products. Aerosol containers and caps and closures are also made from ETP.JIS Standard 20 Feet Tinplate Sheet /Coil Width 300mm 6
Quality Inspection
JIS Standard 20 Feet Tinplate Sheet /Coil Width 300mm 7
JIS Standard 20 Feet Tinplate Sheet /Coil Width 300mm 8JIS Standard 20 Feet Tinplate Sheet /Coil Width 300mm 9JIS Standard 20 Feet Tinplate Sheet /Coil Width 300mm 10JIS Standard 20 Feet Tinplate Sheet /Coil Width 300mm 11JIS Standard 20 Feet Tinplate Sheet /Coil Width 300mm 12JIS Standard 20 Feet Tinplate Sheet /Coil Width 300mm 13JIS Standard 20 Feet Tinplate Sheet /Coil Width 300mm 14JIS Standard 20 Feet Tinplate Sheet /Coil Width 300mm 15
