Product Details:
|
Name: | Stainless Steel Bright Bar | Place Of Origin: | Jiangsu, China |
---|---|---|---|
Standard: | JIS ASTM ASME GB DIN EN | Processing Service: | Bending, Welding, Decoiling, Punching, Cutting |
Length: | Customers' Requirements | Alloy Or Not: | Is Alloy |
Type: | Plates | Application: | Industry,Oil,etc |
High Light: | 4K SS201 Stainless Steel Rod Bar,4K A479 Stainless Steel Rod Bar,ASTM polished stainless steel bar |

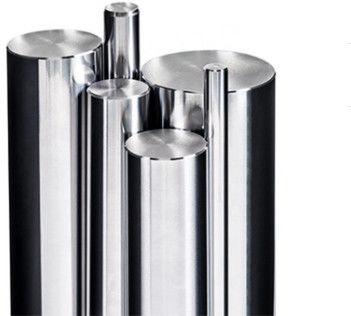

ASTM A479 bright polish Stainless steel round bar 201 Stainless steel bars 201
What is 201 Stainless Steel Round Bar ?
Bright Bars are of 2 types-
1. Cold Drawn and Peeled
2. Turned.
In a Cold Drawn Bright Bar the Hot Rolled Bars are pickled and drawn through a Tungsten Carbide Die as Cold Rolled, no heating is required, that is why it is called a Cold Drawn Bright Bar.Secondly in Peeled / Turned Bright Bar the Hot Rolled Bar is fed into a Turning machine and the surface is turned / removed to the required size of the Dia. This is also a Cold process, no heating is required. Bright Bars can be further Ground Finished for special applications.
Bright Bars have a smooth and a Bright surface with Accurate Tolerance on the Dia. Accurate Tolerance means the tolerance of the Dia is very restricted i.e 0.10 mm approximatly depending on the size of the Dia and as per the customer’s specific requirement. These are the reasons why a Bright Bar enjoys advantages over a Hot Rolled Bar. Bright Bars can be used in automatic Machines for making Steelcomponents whereas a Hot Rolled Bar cannot be used.
Prdouct Description:
Product Name | Stainless Steel Bar |
Type | Cold Drawn or casting |
Diameter | 4-600mm (3/8”-25”) |
Length | 3000mm, 5800mm, 6000mm, 9000m, 12000mm etc. |
Standard | ASTM JIS AISI GB DIN EN |
Surface Finished | BA, 2B,NO.1, NO.4, 4K, HL ,8K |
Application |
It is widely used in high-temperature and electric industry, medical devices, construction, chemistry, food industry, agriculture, and ship components. It also applies to food and beverage packaging, kitchen supplies, trains, aircraft, conveyor belts, vehicles, bolts, nuts, springs, and screen mesh etc. . |
Certification | ISO, SGS,BV |
Technique | Cold drawn or casting |
Edge | Mill Edge /Slit Edge |
Quality | SGS Inspection |
Grade(ASTM UNS) | 201 202 301 304 304L 321 316 316L 317L 347H 309S 310S 904L S32205 2507 254SMOS 32760 253MA N08926 etc. |
Grade (EN) | 1.4301, 1.4307, 1.4541, 1.4401, 1.4404 ,1.4571, 1.4438, 1.4539, 1.4547, 1.4529, 1.4562, 1.4410, 1.4878, 1.4845, 1.4828, 1.4876, 2.4858, 2.4819 |
Main market | Asia/Europe/ South America |
Brand Name | TISCO BAOSTEEL |
Delivery time | Within 7-10 Working Days |
Port of Loading | Xingang, China and other Chinese Main Port |
Price Terms | CIF CFR FOB EX-WORK |
Export Packing | Waterproof Paper, Steel Strip Packed and other Standard Export Seaworthy Package, or customized package |
Supply Ability | 5000 Ton/Tons per Month |
Payment Terms | T/T L/C and Western Union etc. |
Container Dimension |
20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM 40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM |
DIN/EN | UNS | Ingredient | Grade | |
1 | 2.4060 | N02000 | 99Ni-0.15Fe-0.2Mn-0.1Si-0.1Cu-0.1C | Nickl200 |
2 | 2.4601 | N02201 | 99Ni-0.15Fe-0.2Mn-0.1Si-0.1Cu-0.01C | Nickl201 |
3 | 2.4050 | N02270 | 99.9Ni-0.02Fe-0.001Mn-0.002Si-0.005Cu-0.01C | Nickl270 |
4 | 1.4980 | S66286 | 25Ni-15Cr-1.5Mo-2Ti-1Mg-0.03C | INCOLOY Alloy A286 |
5 | N08367 | 25Ni-20Cr-6.3MO-0.25Cu-0.2N-0.01P-0.05S-0.01C | INCOLOY Alloy 25-6HN | |
6 | 1.4529 | N08926 | INCOLOY Alloy 25-6Mo | |
7 | 2.4460 | N08020 | 36Ni-21Cr-3.5Cu2.5Mo-1Mn-0.01C | INCOLOY Alloy 20 |
8 | 1.4563 | N08028 | 32Ni-27Cr-3.5Mo-1Cu-0.01C | INCOLOY Alloy 28 |
9 | 1.4886 | N08330 | 35Ni-18Cr-2Mg-1SI-0.03C | INCOLOY Alloy 330 |
10 | 1.4876 | N08800 | 32Ni-21Cr-0.3~1.2(Al+Ti)0.02C | INCOLOY Alloy 800 |
11 | 1.4876 | N08810 | 32Ni-21Cr-0.3~1.2(Al+Ti)0.08C | INCOLOY Alloy 800H |
12 | 2.4858 | N08825 | 42Ni-21Cr-3Mo-2Cu-0.8Ti-0.1AI-0.02C | INCOLOY Alloy 825 |
13 | 2.4816 | N06600 | 72Ni-151Cr-8Fr-0.2Cu-0.02C | INCONEL Alloy 600 |
14 | 2.4851 | N06601 | 60Ni-22Cr-1.2Al-0.02C | INCONEL Alloy 601 |
15 | 2.4856 | N06625 | 58Ni-21Cr-9Mo-3.5Nb-1CO-0.02C | INCONEL Alloy 625 |
16 | 2.4856 | N06626 | 58Ni-21Cr-9Mo-3.5Nb-1CO-0.02C | INCONEL Alloy 625LCF |
17 | 2.4606 | N06686 | 57Ni-21Cr-16Mo-4W-0.01C | INCONEL Alloy 686 |
18 | 2.4642 | N06690 | 58Ni-30Cr-9Fe-0.2Cu-0.02C | INCONEL Alloy 690 |
19 | 2.4668 | N07718 | 52Ni-19Cr-5Nb-3Mo-1Ti-0.6Al-0.02C | INCONEL Alloy 718 |
20 | 2.4669 | N07750 | 70Ni-15Cr-6Fe-2.5Ti-0.06Al-1Nb-0.02C | INCONEL Alloy X-750 |
21 | 2.4360 | N04400 | 63Ni-32Cu-1Fe-0.1C | MONEL400 |
22 | 2.4375 | N05500 | 63Ni-30Cr-1Fe-3Al-0.6Ti-0.1C | MONEL K-500 |
23 | 2.4819 | N10276 | 57Ni-16Mo-16Cr-5Fe-4W-2.5Co-1Mn-0.35V-0.08Si-0.01C | Hastelloy C-276 |
24 | 2.4610 | N06455 | 65Ni-16Cr-16Mo-0.7Ti-3Fe-2Co-1Mn-0.08Si-0.01C | Hastelloy C-4 |
25 | 2.4602 | N06022 | 56Ni-22Cr-13Mo-3Fe-2.5Co-0.5Mn-0.35V-0.08Si-0.01C | Hastelloy C-22 |
26 | 2.4675 | N06200 | 59Ni-23Cr-16Mo-1.6Cu-0.08Si-0.01C | Hastelloy C-2000 |
27 | 2.4665 | N06002 | 47Ni-22Cr-18Fe-9Mo-1.5Co-0.6W-0.1C-1mn-1Si-0.008B | Hastelloy X |
28 | 2.4617 | N10665 | 69Ni-28Mo-0.5Cr-1.8Fe-3W-1.0Co-1.0Mn-0.01C | Hastelloy B-2 |
29 | 2.4660 | N10675 | 65Ni-28.5Mo-1.5Cr-1.5Fe-3W-3Co-3Mn-0.01C | Hastelloy B-3 |
30 | N06030 | 43Ni-30Cr-15Fe-5.5Mo-2.5W-5Co-2Cu-1.5Mn-0.03C | Hastelloy G-30 | |
31 | N06035 | 58Ni-33Cr-8Mo-2Fe-0.6Si-0.3Cu-0.03C | Hastelloy G-35 | |
32 | 1.4562 | N08031 | 31Ni-27Cr-6.5Mo-1.2Cu-2mn-0.01C | Nicrofer hMo31 |
33 | 2.4605 | N06059 | 59Ni-23Cr-16Mo-1.0Fe-0.01C | Nicrofer hMo59 |
