Product Details:
|
Surface: | Bright/ Stone/ Matte | Colour: | Gold Colour |
---|---|---|---|
Product Name: | MR Food Grade Or Printed Tin Plate ETP & SPTE Steel Coil/sheet For Packaging | Thickness: | 0.16-0.58mm |
Tin Coating: | 1.1g/m2; 2.8g/m2 | Temper: | T1-T5, DR8 |
Base Plate: | MR | Shape: | Plate |
Technique: | Cold Rolled | Length: | 550mm--990mm |
Highlight: | MR Printed Tin Plate ETP,0.58mm Steel Tin Plate,SPTE Steel Tin Plate For Packaging |

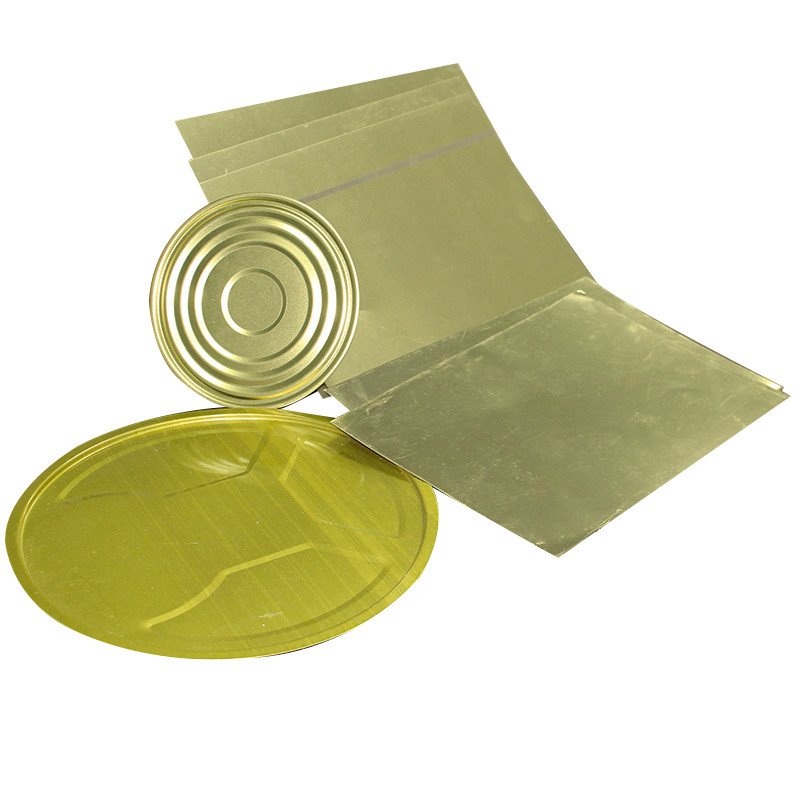

MR food grade or printed tin plate ETP & SPTE steel coil/sheet for packaging
Product Introduction
Tin has no known natural biological role in living organisms.
It is not easily absorbed by animals and humans. The low toxicity is relevant to the widespread use of tin in dinnerware and canned food. Nausea, vomiting and diarrhea have been reported after ingesting canned food containing 200 mg/kg of tin.
There is no evidence that tin or tin compounds cause cancer in humans. Studies in animals have not shown evidence of carcinogenicity for inorganic tin. A study in rats and another in mice showed that a specific organotin, triphenyltin hydroxide, can produce cancer in animals after long-term oral administration.
Specifications
Product Name |
MR food grade or printed tin plate ETP & SPTE steel coil/sheet for packaging |
Standard |
JIS |
Material |
MR |
Grade |
Prime |
Annealing |
BA/ CA |
Thickness |
0.16-0.58mm |
Width |
As customer required |
Temper |
T1, T2, T3, T4, T5, DR8, DR9 |
Coating(g/m2) |
2.8g/m2 |
Surface Finish |
Stone, Bright, Sliver, Matte |
Packaging |
Standard export packing or according to customer's requirements. |
Payment |
T/T or L/C |
JIANGSU SENYILU METAL MATERIAL CO., LTD supplies different specifications of Double reduced (DR) tinplate and Single reduced (SR) tinplate. It can be used in many parts,such as food can, oil can and caps. At present, tinplates have been exported to many countries around the world, such as Egypt, , Tunisia, Thailand and other countries. It is widely used in food packaging and chemical product packagings. We can provide high-quality tinplate that meets international standards.
Coating Structure
Production Process
Mechanical Properties
Temper Grade |
Hardness(HR30Tm) |
Yield Strength(MPa) |
T-1 |
49±3 |
330 |
T-2 |
53±3 |
350 |
T-3 |
57±3 |
370 |
T-4 |
61±3 |
415 |
T-5 |
65±3 |
450 |
T-6 |
70±3 |
530 |
DR-7M |
71±5 |
520 |
DR-8 |
73±5 |
550 |
DR-8M |
73±5 |
580 |
DR-9 |
76±5 |
620 |
DR-9M |
77±5 |
660 |
DR-10 |
80±5 |
690 |
Coating Weight
Former Coating Designation |
Nominal Coating Weight |
Minimum average Coating Weight (g/m2) |
10# |
1.1/1.1 |
0.9/0.9 |
20# |
2.2/2.2 |
1.8/1.8 |
25# |
2.8/2.8 |
2.5/2.5 |
50# |
5.6/5.6 |
5.2/5.2 |
75# |
8.4/8.4 |
7.8/7.8 |
100# |
11.2/11.2 |
10.1/10.1 |
25#/10# |
2.8/1.1 |
2.5/0.9 |
50#/10# |
5.6/1.1 |
5.2/0.9 |
75#/25# |
5.6/2.8 |
5.2/2.5 |
75#/50# |
8.4/2.8 |
7.8/2.5 |
75#/50# |
8.4/5.6 |
7.8/5.2 |
100#/25# |
11.2/2.8 |
10.1/2.5 |
100#/50# |
11.2/5.6 |
10.1/5.2 |
100#/75# |
11.2/8.4 |
10.1/7.8 |
125#/50# |
15.1/5.6 |
13.9/5.2 |
Applications
Tinplate is primarily used for packaging foodstuffs and beverages, but it is also used in containers for oils, grease, paints, polishes, chemicals and many other products. Aerosol containers and caps and closures are also made from ETP.
