Product Details:
|
Base Plate: | MR | Surface: | Bright/stone/silver/matte |
---|---|---|---|
Colour: | Tin Colour Or Gold Colour | Product Name: | Low Price Food Grade Tinplate Bright 2.8g/m2 Tin Plate Used For Milk And Cheese Containers |
Thickness: | 0.16-0.58mm | Tin Coating: | 2.8g/m2; 1.1g/m2 |
Temper: | T1-T5, DR8, DR9 | Length: | 550mm--990mm |
Technique: | Cold Rolled | Shape: | Flat Steel Plate |
High Light: | Bright Food Grade Steel Tinplate,2.8g/M2 Steel Tin plate,900 mm Steel Tin plate |

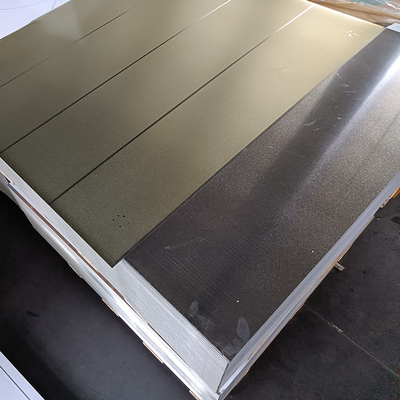

Low Price Food Grade Tinplate Bright 2.8g/m2 Tin plate used for milk and cheese containers
Product Introduction
Tin does not 'rust', although it oxidizes. Your rust is iron oxide. Galvanized steel is steel with a thin zinc coating, likely hot-dip galvanization.
John Singer, a chemist in New London, N.H., says the best way to stave off rust is to apply a coat of clear lacquer inside and outside the tin. It's important to do a test before applying the lacquer, as there's a risk that it can act as a solvent, damaging the ink in the designs.
Specifications
Product Name |
Low Price Food Grade Tinplate Bright 2.8g/m2 Tin plate used for milk and cheese containers |
Standard |
JIS |
Material |
MR |
Grade |
Prime |
Annealing |
BA/ CA |
Thickness |
0.16-0.58mm |
Width |
As customer required |
Temper |
T1, T2, T3, T4, T5, DR8, DR9 |
Coating(g/m2) |
2.8g/m2 |
Surface Finish |
Stone, Bright, Sliver, Matte |
Packaging |
Standard export packing or according to customer's requirements. |
Payment |
T/T or L/C |
JIANGSU SENYILU METAL MATERIAL CO., LTD supplies different specifications of Double reduced (DR) tinplate and Single reduced (SR) tinplate. It can be used in many parts,such as food can, oil can and caps. At present, tinplates have been exported to many countries around the world, such as Egypt, , Tunisia, Thailand and other countries. It is widely used in food packaging and chemical product packagings. We can provide high-quality tinplate that meets international standards.
Coating Structure
Production Process
Mechanical Properties
Temper Grade |
Hardness(HR30Tm) |
Yield Strength(MPa) |
T-1 |
49±3 |
330 |
T-2 |
53±3 |
350 |
T-3 |
57±3 |
370 |
T-4 |
61±3 |
415 |
T-5 |
65±3 |
450 |
T-6 |
70±3 |
530 |
DR-7M |
71±5 |
520 |
DR-8 |
73±5 |
550 |
DR-8M |
73±5 |
580 |
DR-9 |
76±5 |
620 |
DR-9M |
77±5 |
660 |
DR-10 |
80±5 |
690 |
Coating Weight
Former Coating Designation |
Nominal Coating Weight |
Minimum average Coating Weight (g/m2) |
10# |
1.1/1.1 |
0.9/0.9 |
20# |
2.2/2.2 |
1.8/1.8 |
25# |
2.8/2.8 |
2.5/2.5 |
50# |
5.6/5.6 |
5.2/5.2 |
75# |
8.4/8.4 |
7.8/7.8 |
100# |
11.2/11.2 |
10.1/10.1 |
25#/10# |
2.8/1.1 |
2.5/0.9 |
50#/10# |
5.6/1.1 |
5.2/0.9 |
75#/25# |
5.6/2.8 |
5.2/2.5 |
75#/50# |
8.4/2.8 |
7.8/2.5 |
75#/50# |
8.4/5.6 |
7.8/5.2 |
100#/25# |
11.2/2.8 |
10.1/2.5 |
100#/50# |
11.2/5.6 |
10.1/5.2 |
100#/75# |
11.2/8.4 |
10.1/7.8 |
125#/50# |
15.1/5.6 |
13.9/5.2 |
Applications
Tinplate is primarily used for packaging foodstuffs and beverages, but it is also used in containers for oils, grease, paints, polishes, chemicals and many other products. Aerosol containers and caps and closures are also made from ETP.
