Product Details:
|
| Tin Coating: | 2.8/ 2.8; 1.1/1.1 | Product Name: | Good Quality T3 ETP Tin Plate Used For Baby Milk Cans |
|---|---|---|---|
| Thickness: | 0.14-1.0mm | Colour: | Tin Colour |
| Material: | MR | Length: | 500mm--990mm |
| Surface Treatment: | Tin Coated | Temper: | T3 |
| High Light: | ETP 0.14 mm Steel Tin Plate,MR Tin colour Steel TinPlate,ETP Tin colour Steel Tin Plate |
||

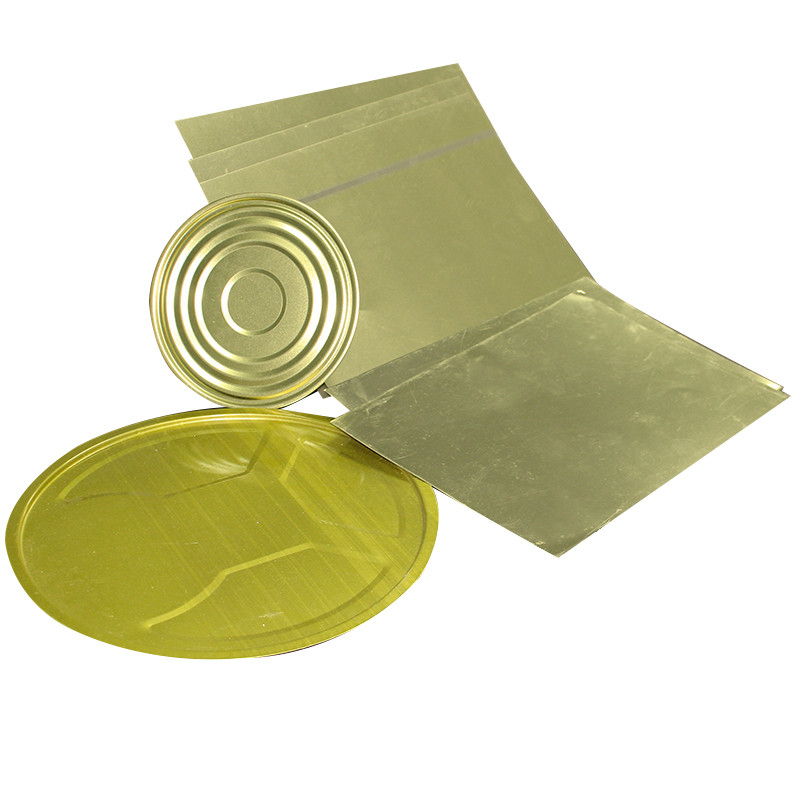

Good quality T3 ETP tin plate used for baby milk cans
Product Introduction
ETP is a cold rolled mild steel coil or sheet, coated on both sides with tin by a continuous electrolytic operation, which when flow melted forms a tin iron layer in between the steel base and the lustrous free tin layer.
ETP may be of Single Reduced (SR) or Double Reduced (DR) type and available, both in sheet and / or coil form.
Specifications
|
Product Name |
Good quality T3 ETP tin plate used for baby milk cans |
|
Standard |
JIS |
|
Material |
MR |
|
Grade |
Prime |
|
Annealing |
BA/ CA |
|
Thickness |
0.14-1.0mm |
|
Width |
As customer required |
|
Temper |
T1, T2, T3, T4, T5 |
|
Coating(g/m2) |
1.1/1.1 2.0/2.0 |
|
Surface Finish |
Stone, Bright, Sliver, Matte |
|
Packaging |
Standard export packing or according to customer's requirements. |
|
Payment |
T/T or L/C |
JIANGSU SENYILU METAL MATERIAL CO., LTD supplies different specifications of Double reduced (DR) tinplate and Single reduced (SR) tinplate. It can be used in many parts,such as food can, oil can and caps. At present, tinplates have been exported to many countries around the world, such as Egypt, Russia, Tunisia, Thailand and other countries. It is widely used in food packaging and chemical product packagings. We can provide high-quality tinplate that meets international standards.
Coating Structure
Production Process
Mechanical Properties
|
Temper Grade |
Hardness(HR30Tm) |
Yield Strength(MPa) |
|
T-1 |
49±3 |
330 |
|
T-2 |
53±3 |
350 |
|
T-3 |
57±3 |
370 |
|
T-4 |
61±3 |
415 |
|
T-5 |
65±3 |
450 |
|
T-6 |
70±3 |
530 |
|
DR-7M |
71±5 |
520 |
|
DR-8 |
73±5 |
550 |
|
DR-8M |
73±5 |
580 |
|
DR-9 |
76±5 |
620 |
|
DR-9M |
77±5 |
660 |
|
DR-10 |
80±5 |
690 |
Coating Weight
|
Former Coating Designation |
Nominal Coating Weight |
Minimum average Coating Weight (g/m2) |
|
10# |
1.1/1.1 |
0.9/0.9 |
|
20# |
2.2/2.2 |
1.8/1.8 |
|
25# |
2.8/2.8 |
2.5/2.5 |
|
50# |
5.6/5.6 |
5.2/5.2 |
|
75# |
8.4/8.4 |
7.8/7.8 |
|
100# |
11.2/11.2 |
10.1/10.1 |
|
25#/10# |
2.8/1.1 |
2.5/0.9 |
|
50#/10# |
5.6/1.1 |
5.2/0.9 |
|
75#/25# |
5.6/2.8 |
5.2/2.5 |
|
75#/50# |
8.4/2.8 |
7.8/2.5 |
|
75#/50# |
8.4/5.6 |
7.8/5.2 |
|
100#/25# |
11.2/2.8 |
10.1/2.5 |
|
100#/50# |
11.2/5.6 |
10.1/5.2 |
|
100#/75# |
11.2/8.4 |
10.1/7.8 |
|
125#/50# |
15.1/5.6 |
13.9/5.2 |
Applications
Tinplate is primarily used for packaging foodstuffs and beverages, but it is also used in containers for oils, grease, paints, polishes, chemicals and many other products. Aerosol containers and caps and closures are also made from ETP.
