JIS Standard Tinplate Sheet Coil Width 300mm For Can Lid And Bottom End
| MOQ: | 5 tons |
| Price: | negotiated |
| Standard Packaging: | standard seaworthy package |
| Delivery Period: | 15-20days |
| Payment Method: | L/C,T/T,Western Union |
| Supply Capacity: | 10000tons |
JIS tinplate sheet coil
,300mm tinplate sheet coil
,1000mm etp tinplate

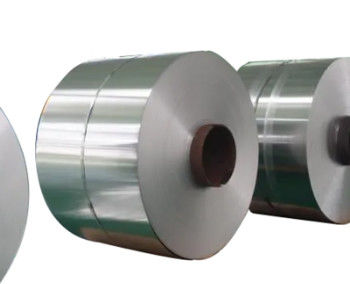

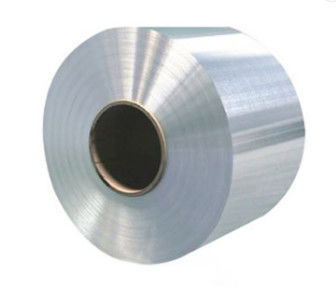

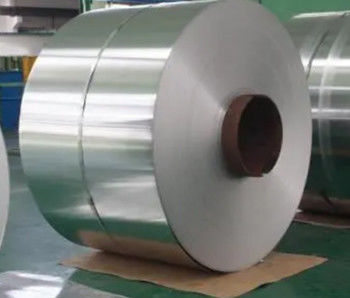

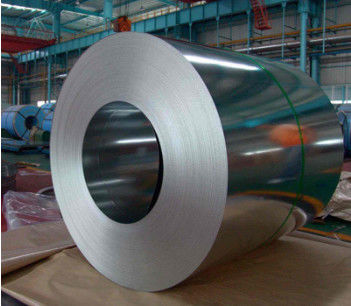

JIS Standard Tinplate Sheet /Coil Width 300mm For Can Lid And Bottom End
Tinplate (SPTE) is tin plated on both sides of the iron sheet, consisting of cold rolled low carbon thin steel plate. It offers excellent rust resistance, corrosion resistance, and is non-toxic. Primarily used for making metal packaging, including canned food, beverages, chemicals, medicine, sanitation products, coatings, paints, sprays, and cosmetic caps.
| Product Name | JIS Standard Tinplate Sheet /Coil Width 300mm For Can Lid And Bottom End |
|---|---|
| Standard | JIS, EN |
| Material | MR SPCC |
| Grade | Prime |
| Annealing | BA/CA |
| Thickness | 0.16-3.0mm |
| Width | 600-1500mm |
| Temper | T1, T2, T3, T4, T5, DR7, DR8, DR9, TH550, TH580, TH620, TH660 |
| Coating (g/m²) | 1.1/1, 2.0/2.0, 2.8/2.8, 2.8/5.6, 5.6/5.6, 8.4/8.4, 11.2/11.2, etc |
| Surface Finish | Stone, Bright, Silver |
| Packaging | Standard export packing or according to customer's requirements |
| Payment | T/T or L/C or D/P |
Tinplate (SPTE) is the common name for electroplated tin steel sheets, referring to cold-rolled low-carbon steel sheets or strips coated with commercial pure tin on both sides. The tin coating primarily acts to prevent corrosion and rust. This material combines the strength and formability of steel with the corrosion resistance, solderability, and aesthetic appearance of tin, resulting in a product with excellent corrosion resistance, non-toxicity, high strength, and good ductility.
Tinplate packaging has a wide range of coverage in the packaging industry due to its good sealing properties, preservation capabilities, light-proof nature, ruggedness, and unique metal decoration appeal. Its strong oxidation resistance, diverse styles, and exquisite printing make tinplate packaging containers popular with customers, widely used in food packaging, pharmaceutical packaging, commodity packaging, instrument packaging, and industrial packaging.
| Temper Grade | Hardness (HR30Tm) | Yield Strength (MPa) |
|---|---|---|
| T-1 | 49±3 | 330 |
| T-2 | 53±3 | 350 |
| T-3 | 57±3 | 370 |
| T-4 | 61±3 | 415 |
| T-5 | 65±3 | 450 |
| T-6 | 70±3 | 530 |
| DR-7M | 71±5 | 520 |
| DR-8 | 73±5 | 550 |
| DR-8M | 73±5 | 580 |
| DR-9 | 76±5 | 620 |
| DR-9M | 77±5 | 660 |
| DR-10 | 80±5 | 690 |
| Former Coating Designation | Nominal Coating Weight (g/m²) | Minimum Average Coating Weight (g/m²) |
|---|---|---|
| 10# | 1.1/1.1 | 0.9/0.9 |
| 20# | 2.2/2.2 | 1.8/1.8 |
| 25# | 2.8/2.8 | 2.5/2.5 |
| 50# | 5.6/5.6 | 5.2/5.2 |
| 75# | 8.4/8.4 | 7.8/7.8 |
| 100# | 11.2/11.2 | 10.1/10.1 |
| 25#/10# | 2.8/1.1 | 2.5/0.9 |
| 50#/10# | 5.6/1.1 | 5.2/0.9 |
| 75#/25# | 5.6/2.8 | 5.2/2.5 |
| 75#/50# | 8.4/2.8 | 7.8/2.5 |
| 75#/50# | 8.4/5.6 | 7.8/5.2 |
| 100#/25# | 11.2/2.8 | 10.1/2.5 |
| 100#/50# | 11.2/5.6 | 10.1/5.2 |
| 100#/75# | 11.2/8.4 | 10.1/7.8 |
| 125#/50# | 15.1/5.6 | 13.9/5.2 |
Tinplate is primarily used for packaging foodstuffs and beverages, but it is also used in containers for oils, grease, paints, polishes, chemicals, and many other products. Aerosol containers, caps, and closures are also made from ETP.
